SP1005-01ETG Series

1 Ch 30KV 5V TVS Diode Array SOD882

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

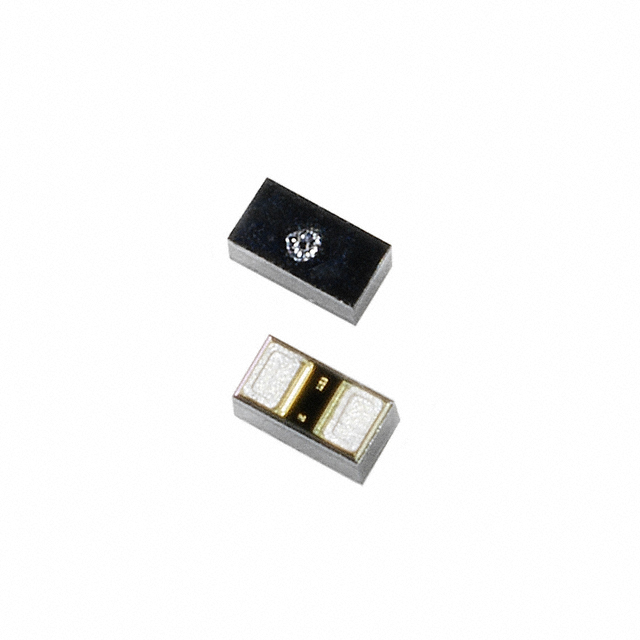

1 Ch 30KV 5V TVS Diode Array SOD882

Part	Operating Temperature [Min]	Operating Temperature [Max]	Bidirectional Channels [custom]	Voltage - Reverse Standoff (Typ) [Max]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Breakdown (Min)	Qualification	Power Line Protection	Mounting Type	Current - Peak Pulse (10/1000µs)	Supplier Device Package	Package / Case	Grade	Type
Littelfuse/Commercial Vehicle Products SP1005-01ETG	-40 °C	125 ¯C	1	6 V	15.6 V	8.5 V	AEC-Q101		Surface Mount	10 A	SOD-882	SOD-882	Automotive	Zener

Catalog

1 Ch 30KV 5V TVS Diode Array SOD882

Key Features

• ESD, IEC61000-4-2, ±30kV contact, ±30kV air

• EFT, IEC61000-4-4, 40A (5/50ns)

• Lightning, IEC61000-4-5,10 A (tP=8/20μs)

• Low capacitance of 30pF(@ VR=0V)

• Low leakage current of 0.1μA at 5V

• Space efficient 0201 and 0402 footprint

• AEC-Q101 qualified (SOD882 package)

Description

The SP1005 includes back-to-back Zener diodes fabricated in a proprietary silicon avalanche technology to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation. The back-to-back configuration provides symmetrical ESD protection for data lines when AC signals are present.
