P70-60000 Series
Manufacturer: Harwin Inc.
Beta
⌘K

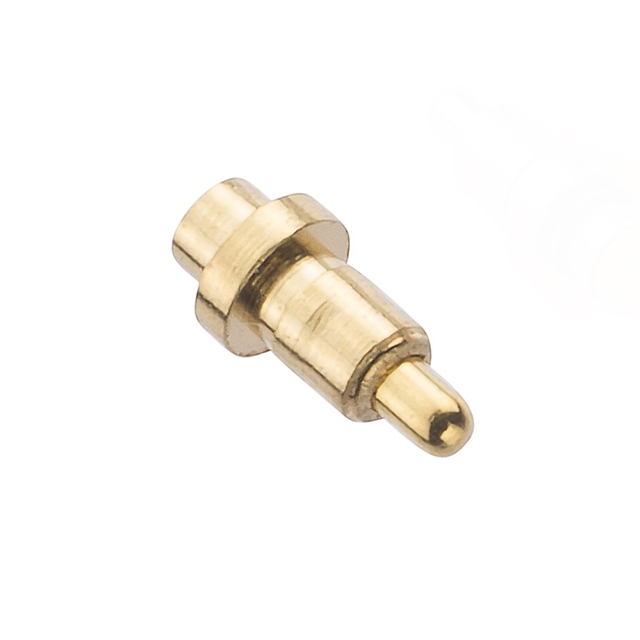

SPRING LOADED CONTACT W/PEG, 2.8MM, SMT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height | Minimum Working Height | Recommended Working Height | Recommended Working Height | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Mating Cycles | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | Gold | Through Hole | 0.087 in | 2.2 mm | 0.075 in | 1.9 mm | 2.1 mm | 0.083 in | 16 µin | 0.41 µm | Sleeve & Plunger (Pogo Pins) | Brass | 10000 | 39.77 gf | 0.6 mm | 0.024 in | 1.7 mm | 0.067 " |
