UCC2895-EP Series
Enhanced Product Bicmos Advanced Phase Shift Pwm Controller
Manufacturer: Texas Instruments
Catalog
Enhanced Product Bicmos Advanced Phase Shift Pwm Controller
Beta
⌘K
Enhanced Product Bicmos Advanced Phase Shift Pwm Controller
Enhanced Product Bicmos Advanced Phase Shift Pwm Controller
Enhanced Product Bicmos Advanced Phase Shift Pwm Controller
| Part | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Function | Clock Sync | Synchronous Rectifier | Topology | Mounting Type | Frequency - Switching | Package / Case | Number of Outputs | Output Phases | Output Configuration | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Duty Cycle (Max) [Max] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

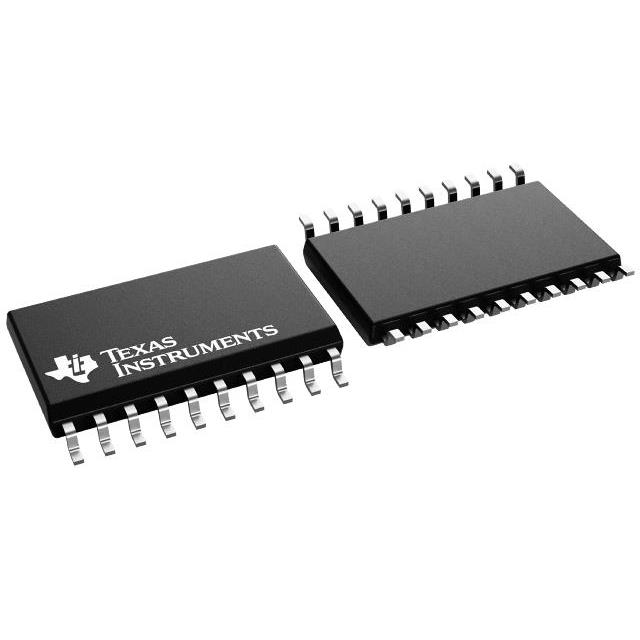

Texas Instruments | Transistor Driver | 125 °C | -55 °C | Step-Up/Step-Down | Full-Bridge | Surface Mount | 500 kHz | 20-SOIC (0.295" 7.50mm Width) | 1 | 1 | Positive | 20-SOIC | 16.5 V | 10 V | 100 % | Current Limit Dead Time Frequency Control Phase Control Pulse Skipping Ramp Soft Start |
