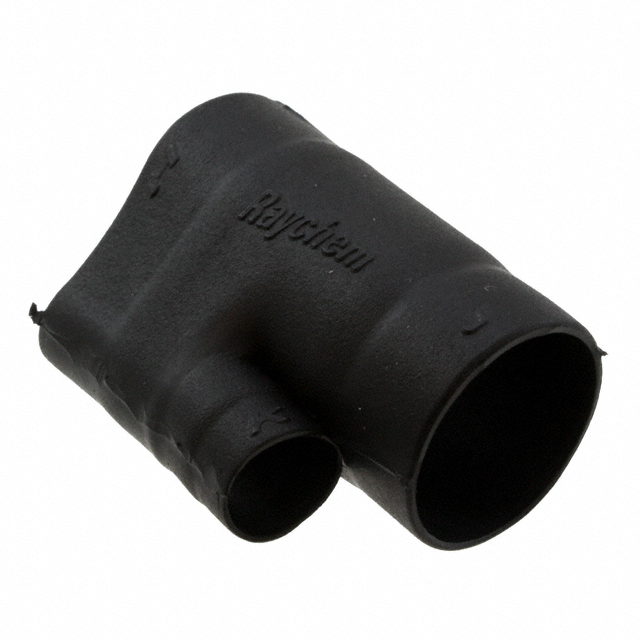

322A112 Series

Catalog

HEATSHRNK BOOT BRKOUT 2:1 T SZ12

Part	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Total Length Recovered [x]	Total Length Recovered [x]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Small Recovered Length	Small Recovered Length	Shell Size - Insert	Color	Type	Material	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine 322A112-25-0	6.6 mm	0.26 in	52.3 mm	2.059 in	0.52 in	13.21 mm	1.031 in	26.19 mm	0.76 in	19.3 mm	12	Black	Boot Transition - Breakout 2:1 (T)	Elastomer Semi-Rigid	0.23 in	5.84 mm
TE Connectivity Aerospace, Defense and Marine 322A112-100/86-0	6.6 mm	0.26 in	52.3 mm	2.059 in	0.52 in	13.21 mm	1.031 in	26.19 mm	0.76 in	19.3 mm	12		Boot Transition - Side Breakout 90°	Zerohal™	0.228 in	5.79 mm

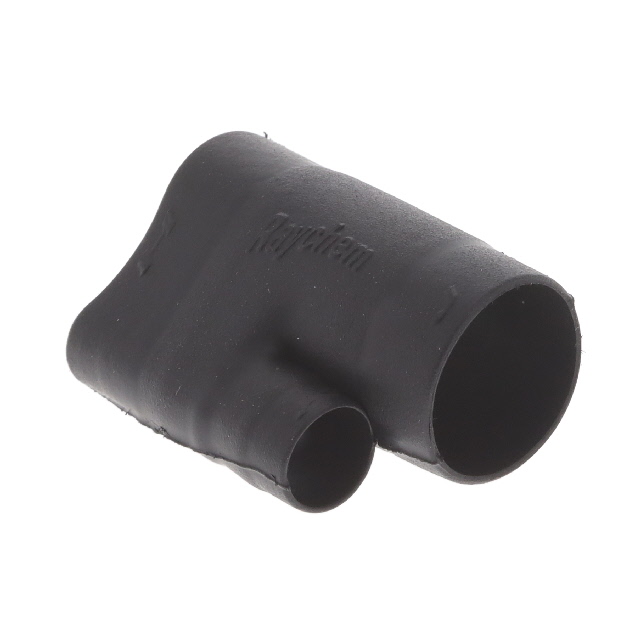

TE Connectivity Aerospace, Defense and Marine 322A112-3-0	6.6 mm	0.26 in	52.3 mm	2.059 in	0.52 in	13.21 mm	1.031 in	26.19 mm	0.76 in	19.3 mm	12	Black	Boot Transition - Breakout 2:1 (T)	Polyolefin (PO) Semi-Rigid	0.23 in	5.84 mm
TE Connectivity Aerospace, Defense and Marine 322A112-12-0	6.6 mm	0.26 in	52.3 mm	2.059 in	0.52 in	13.21 mm	1.031 in	26.19 mm	0.76 in	19.3 mm	12	Black	Boot Transition - Breakout 2:1 (T)	Fluoroelastomer (FKM) Flexible	0.23 in	5.84 mm
