5273C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

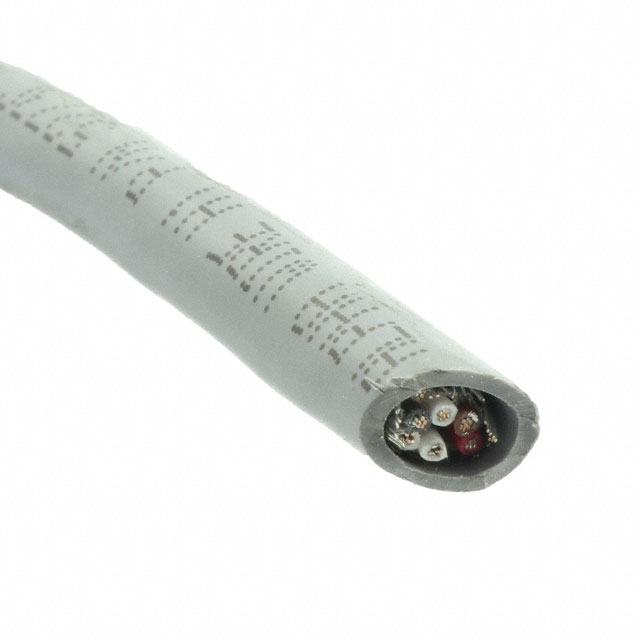

MULTIPAIR CABLE, XTRA GUARD® 1, SHIELDED, 3 PAIR, 24 AWG, 0.23 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Conductor Insulation | Features | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Jacket (Insulation) Material | Wire Gauge | Voltage | Number of Conductors | Cable Type | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Slate | 7 | 32 AWG | ISO 10993 | 0.813 mm | 0.032 in | Copper Tinned | 100 ft | 30.5 m | 0.252 in | 6.4 mm | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | 300 VDC | 6 | Multi-Pair | Communication Control | -35 °C | 105 ░C | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Slate | 7 | 32 AWG | ISO 10993 | 0.813 mm | 0.032 in | Copper Tinned | 0.252 in | 6.4 mm | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | 300 VDC | 6 | Multi-Pair | Communication Control | -35 °C | 105 ░C | ||||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | Black | 7 | 32 AWG | ISO 10993 | 0.813 mm | 0.032 in | Copper Tinned | 0.252 in | 6.4 mm | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | 300 VDC | 6 | Multi-Pair | Communication Control | -35 °C | 105 ░C | 304.8 m | 1000 ft |
