CX26A Series

Manufacturer: Serpac

Catalog

ENCLOSURE PLAS 1.68"L X 1.45"W

Part	Design	Area (L x W) [custom]	Area (L x W) [custom]	Thickness	Thickness	Material	Container Type	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Color	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Material Flammability Rating

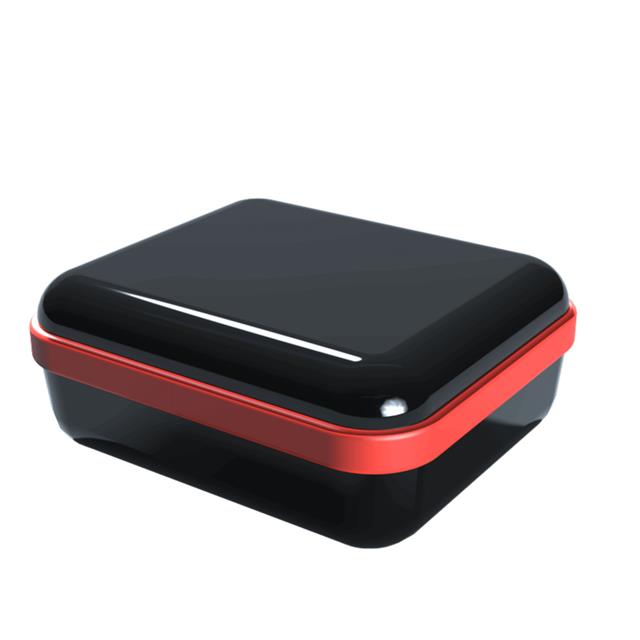

Serpac CX26ABKAOR	Cover Included Hand Held	2.43 in˛	15.7 cm˛	0.08 in	2.03 mm	Plastic Polycarbonate	Enclosure	0.71 in	18.03 mm	2.43 in²	15.7 cm²	Black Orange	12 13 IP67 NEMA 4X	1.45 in	36.83 mm	42.67 mm	1.68 "	UL94 V-2

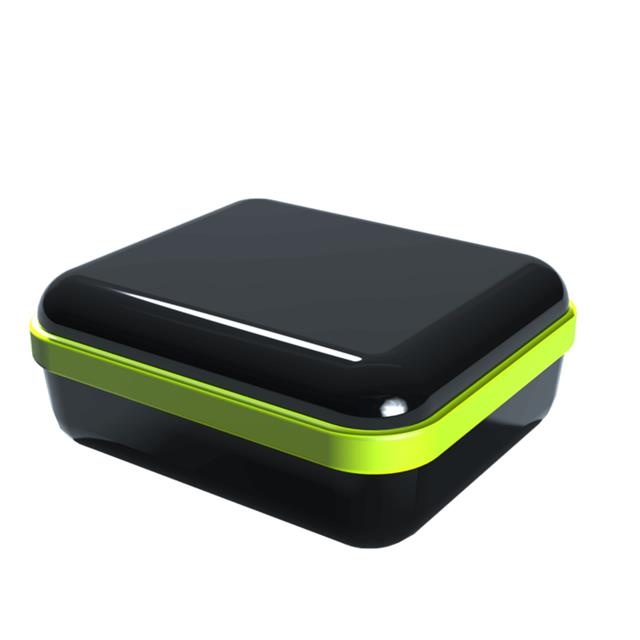

Serpac CX26ABKANG	Cover Included Hand Held			0.08 in	2.03 mm	Plastic Polycarbonate	Enclosure	0.71 in	18.03 mm	2.43 in²	15.7 cm²	Black Neon Green	12 13 IP67 NEMA 4X	1.45 in	36.83 mm	42.67 mm	1.68 "	UL94 V-2

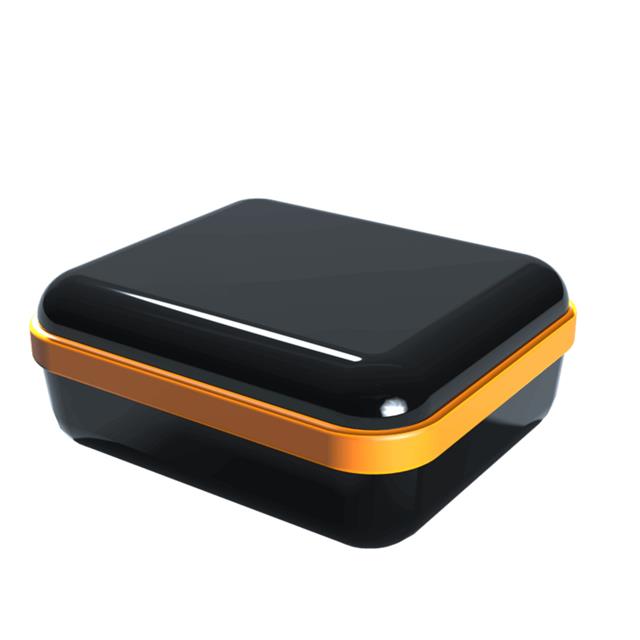

Serpac CX26ABKANO	Cover Included Hand Held	2.43 in˛	15.7 cm˛	0.08 in	2.03 mm	Plastic Polycarbonate	Enclosure	0.71 in	18.03 mm	2.43 in²	15.7 cm²	Black Neon Orange	12 13 IP67 NEMA 4X	1.45 in	36.83 mm	42.67 mm	1.68 "	UL94 V-2

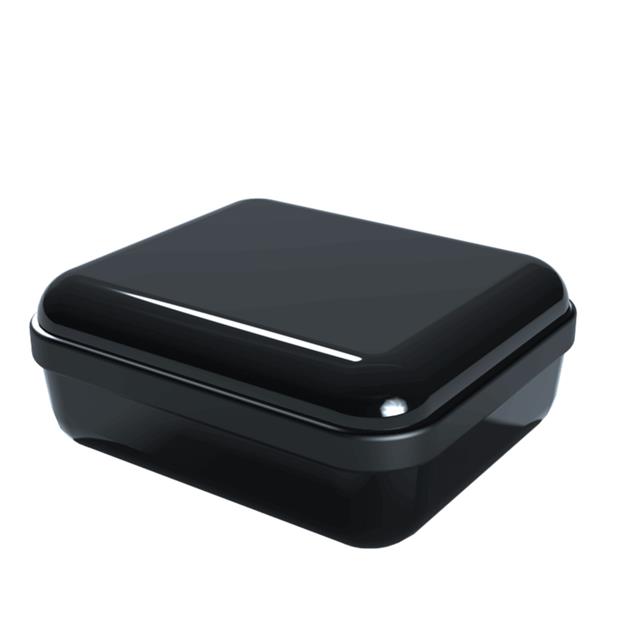

Serpac CX26ABKABK	Cover Included Hand Held	2.43 in˛	15.7 cm˛	0.08 in	2.03 mm	Plastic Polycarbonate	Enclosure	0.71 in	18.03 mm	2.43 in²	15.7 cm²	Black	12 13 IP67 NEMA 4X	1.45 in	36.83 mm	42.67 mm	1.68 "	UL94 V-2
Serpac CX26ABKABKYL	Cover Included Hand Held	2.43 in˛	15.7 cm˛	0.08 in	2.03 mm	Plastic Polycarbonate	Enclosure	0.71 in	18.03 mm	2.43 in²	15.7 cm²		12 13 IP67 NEMA 4X	1.45 in	36.83 mm	42.67 mm	1.68 "	UL94 V-2

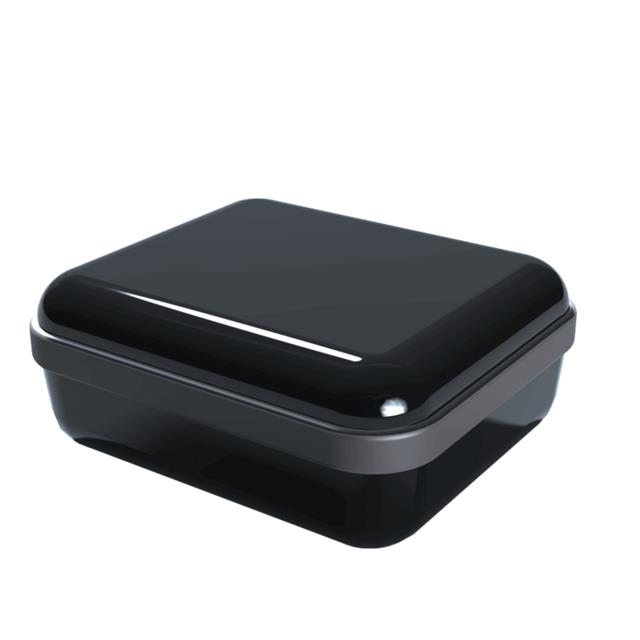

Serpac CX26ABKAGM	Cover Included Hand Held			0.08 in	2.03 mm	Plastic Polycarbonate	Enclosure	0.71 in	18.03 mm	2.43 in²	15.7 cm²	Black Gunmetal	12 13 IP67 NEMA 4X	1.45 in	36.83 mm	42.67 mm	1.68 "	UL94 V-2
