LB16WKG01 Series

Catalog

STANDARD SIZE PANEL SEAL PUSHBUTTON

Part	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Current Rating (Amps)	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Type	Color - Actuator/Cap	Voltage Rating - AC	Mounting Type	Switch Function	Illumination Type, Color	Ingress Protection	Actuator Marking
NKK Switches LB16WKG01-6F-JB	200000 Cycles	100000 Cycles	3.3 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	Green LED	IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-6B-JB	200000 Cycles	100000 Cycles	3.3 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	LED White	IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-5C24-JC	200000 Cycles	100000 Cycles	24 V	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	LED Red	IP65 - Dust Tight Water Resistant	No Marking

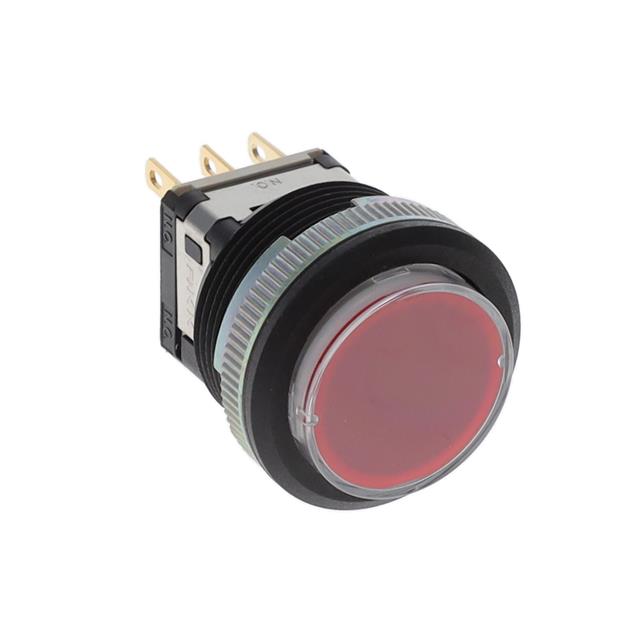

NKK Switches LB16WKG01-5C-JC	200000 Cycles	100000 Cycles	1.9 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	LED Red	IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-5C05-JC	200000 Cycles	100000 Cycles	5 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	LED Red	IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-CJ	200000 Cycles	100000 Cycles		0.4 VA	28 V	70 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Standard	Red	28 V	Panel Mount Front	On-On		IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-5C-JB	200000 Cycles	100000 Cycles	1.9 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	LED Red	IP65 - Dust Tight Water Resistant	No Marking

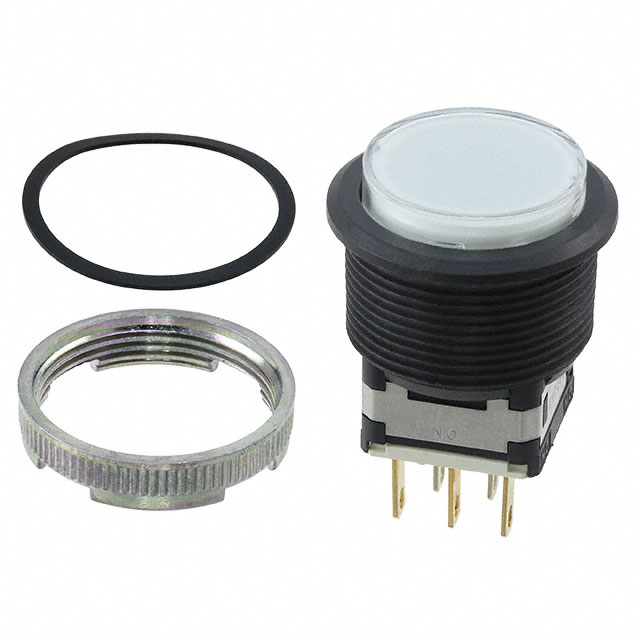

NKK Switches LB16WKG01-5F-JB	200000 Cycles	100000 Cycles	2.1 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	Green LED	IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-5C12-JC	200000 Cycles	100000 Cycles	12 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	LED Red	IP65 - Dust Tight Water Resistant	No Marking
NKK Switches LB16WKG01-5F-JF	200000 Cycles	100000 Cycles	2.1 VDC	0.4 VA	28 V	50 °C	-25 °C	Solder Quick Connect - 0.110" (2.8mm)	SPDT	Button Round	22 mm	Illuminated Standard	Clear	28 V	Panel Mount Front	On-On	Green LED	IP65 - Dust Tight Water Resistant	No Marking
