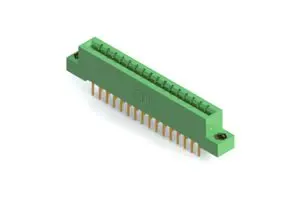

333-032 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 32POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Mounting Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Contact Finish | Read Out | Contact Material | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Color | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Type | Number of Rows [custom] | Termination | Termination Rows | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Solder | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Right Angle Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | Through Hole | -40 C | 105 ░C | Female | Gold | Single | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 32 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Solder | 1 | 1 | ||||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Flush Mount M3 Threaded Insert Top Opening | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Wire Wrap | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | 0.156 " | 3.96 mm | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Solder | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Wire Wrap | |||||
 EDAC Inc. | 2 | Polyester Thermoplastic | Through Hole | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Wire Wrap | |||
 EDAC Inc. | Polyester Thermoplastic | Through Hole | 4-40 Threaded Insert Top Mount Opening | -40 C | 105 ░C | Female | Gold | Single | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 32 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Wire Wrap | 1 | 1 | |||||
 EDAC Inc. | Polyester Thermoplastic | Right Angle Through Hole | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Gold | Single | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 32 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Cantilever | Wire Wrap | 1 | 1 | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | Board Edge Straddle Mount | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | -40 C | 105 ░C | Female | Gold | Dual | Copper Alloy | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Green | 16 | 0.25 Ám | 10 Áin | Non Specified - Dual Edge | Cantilever | 2 | Solder Eyelet(s) | Card Extender |
