OSTTE16 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 16P SIDE ENT 3.5MM PCB
| Part | Screw Material - Plating | Screw Thread | Housing Material | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material - Plating | Wire Termination | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level | Features | Pitch | Pitch | Number of Levels | Color | Mounting Type | Current | Voltage | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

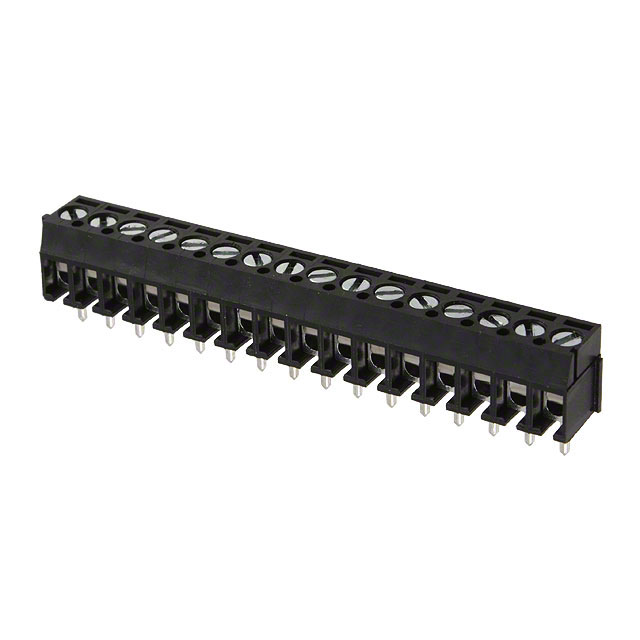

 On Shore Technology Inc. | Steel - Zinc Plated | M2 | Thermoplastic | Stainless Steel | 1.7 Lb-In | 0.2 Nm | 115 °C | -40 C | Tin Plated | Screw - Leaf Spring Wire Guard | 26 AWG | 16 AWG | 16 | Interlocking (Side) | 3.5 mm | 0.138 " | 1 | Black | Through Hole | 10 A | 125 V | Horizontal with Board |

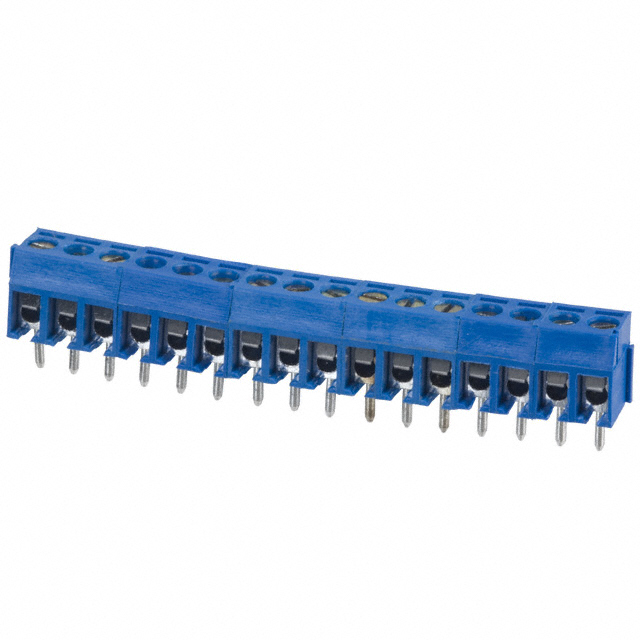

 On Shore Technology Inc. | Steel - Zinc Plated | M2 | Thermoplastic | Stainless Steel | 1.7 Lb-In | 0.2 Nm | 105 ░C | -30 ░C | Brass - Tin Plated | Screw - Leaf Spring Wire Guard | 26 AWG | 16 AWG | 16 | Interlocking (Side) | 3.5 mm | 0.138 " | 1 | Blue | Through Hole | 10 A | 125 V | Horizontal with Board |
