- Series

Manufacturer: Cinch Connectivity Solutions AIM-Cambridge

Catalog

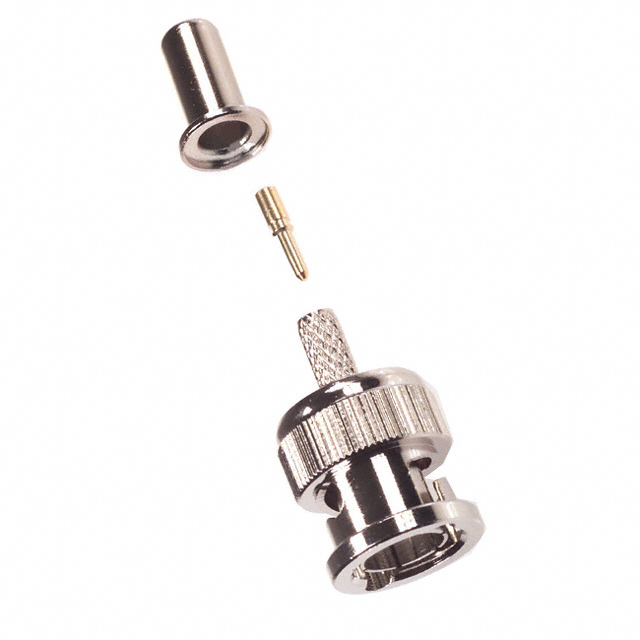

CONN BNC PLUG STR 75 OHM CRIMP

Part	Connector Type	Impedance	Contact Termination	Center Contact Material	Connector Style	Housing Color	Frequency - Max	Mounting Type	Shield Termination	Fastening Type	Number of Ports	Cable Group	Body Material	Voltage Rating	Includes	Includes Total Count	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Center Contact Plating	Opening Size	Height	Features	Color	Type	Type Attributes	Material	Mounting Feature	Impedance	Mating Cycles	Convert From (Adapter End)	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Type	Adapter Series	Style	Center Gender	Conversion Type	Insert Quantity	Convert To (Adapter End)
Cinch Connectivity Solutions AIM-Cambridge 28-91057	Male Pin Plug	75 Ohm	Crimp	Brass	BNC	Silver	2 GHz	Free Hanging (In-Line)	Crimp	Bayonet Lock	1	AT&T 735A Belden 8218	Brass	500 V	Connector Contact Sleeve	3 pcs	Polytetrafluoroethylene (PTFE)	-55 °C	85 °C	Nickel	Gold

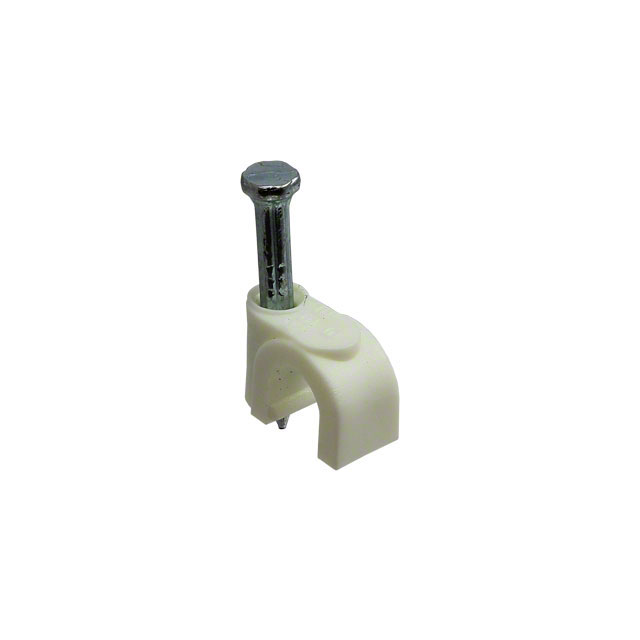

Cinch Connectivity Solutions AIM-Cambridge 25-7250								Fastener														0.213 in	0.378 in	Hardware Included	White	Clip U-Type	Half	Polyethylene (PE)
Cinch Connectivity Solutions AIM-Cambridge 25-7350	Female Socket Jack		Solder Cup	Bronze	UHF	Silver	500 MHz	Panel Mount	Solder	Threaded	1		Zinc	500 V			Polyoxymethylene (POM) Acetal	-55 °C	85 °C	Nickel	Nickel								Flange	Non-Constant	500 cycles
Cinch Connectivity Solutions AIM-Cambridge 26-8010		50 Ohm		Brass				Free Hanging (In-Line)		Threaded			Brass				Polyoxymethylene (POM) Acetal			Nickel	Nickel											Female Socket N Jack	N Jack	Female Socket	Jack to Jack	N to N	Straight	Female	Same Series
Cinch Connectivity Solutions AIM-Cambridge 25-7200		75 Ohm		Phosphor Bronze			750 MHz	Panel Mount		Threaded			Zinc				Polyethylene (PE)			Nickel	Tin								Bulkhead			F Jack Female Socket	F Jack	Female Socket	Jack to Jack	F to F	Straight	Female	Same Series

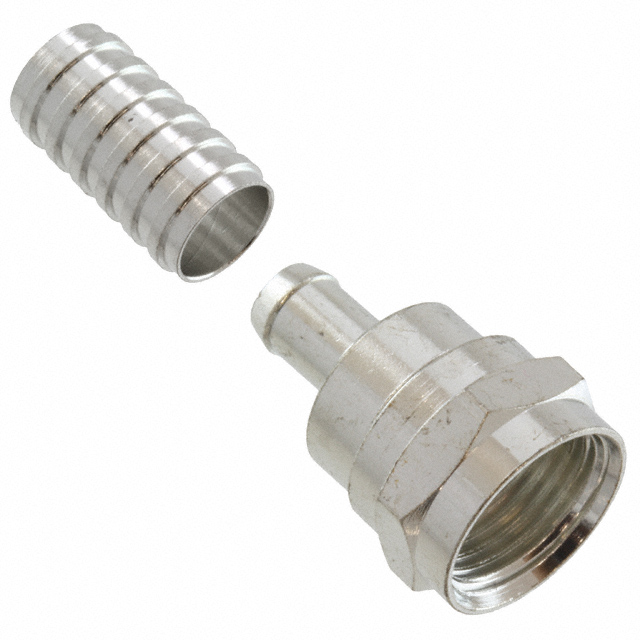

Cinch Connectivity Solutions AIM-Cambridge 25-7035	Male Pin Plug	75 Ohm			F Type	Silver	750 MHz	Free Hanging (In-Line)	Crimp	Threaded	1	RG-59TFE	Brass		Connector Sleeve	2 pcs				Nickel

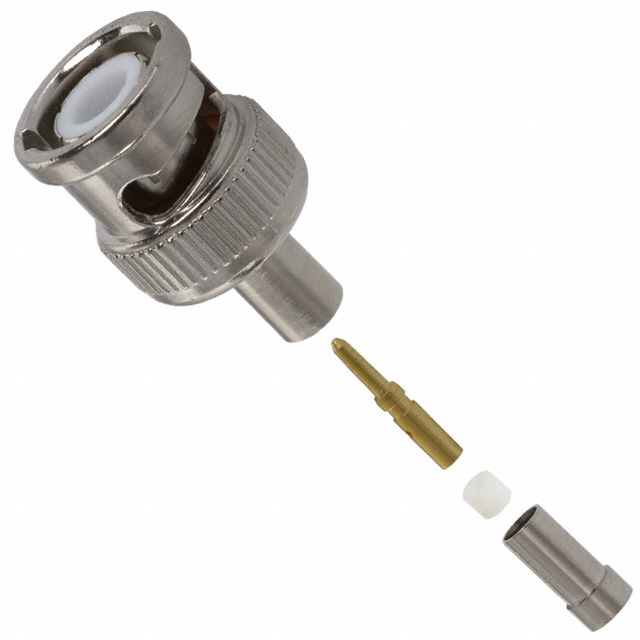

Cinch Connectivity Solutions AIM-Cambridge CPM8819	Male Pin Plug	50 Ohm	Crimp	Brass	BNC	Silver	4 GHz	Free Hanging (In-Line)	Crimp	Bayonet Lock	1	188 316 RG-174	Zinc	500 V	Bushing Connector Contact Insert	4 pcs	Polyoxymethylene (POM) Acetal	-55 °C	85 °C	Nickel	Gold										500 cycles									1 pcs

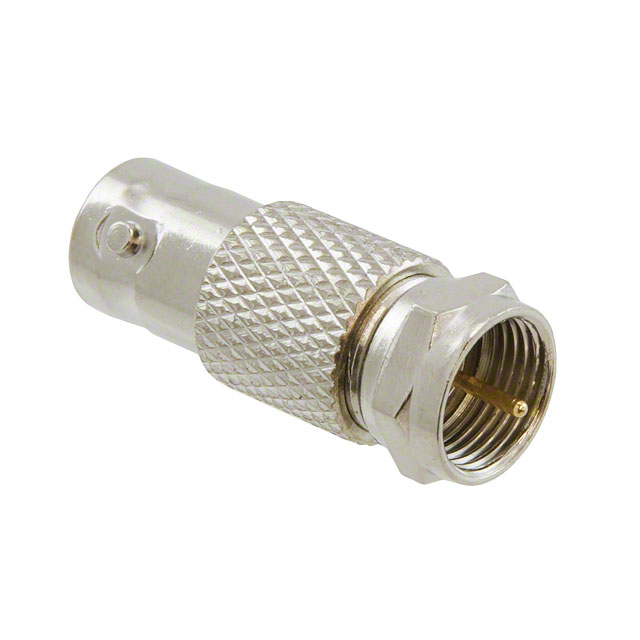

Cinch Connectivity Solutions AIM-Cambridge 27-8100		75 Ohm		Brass			500 MHz	Free Hanging (In-Line)		Bayonet Lock Threaded			Brass				Polyoxymethylene (POM) Acetal			Nickel	Gold											BNC Jack Female Socket			Plug to Jack	BNC to F	Straight	Female Male	Between Series		F Plug Male Pin

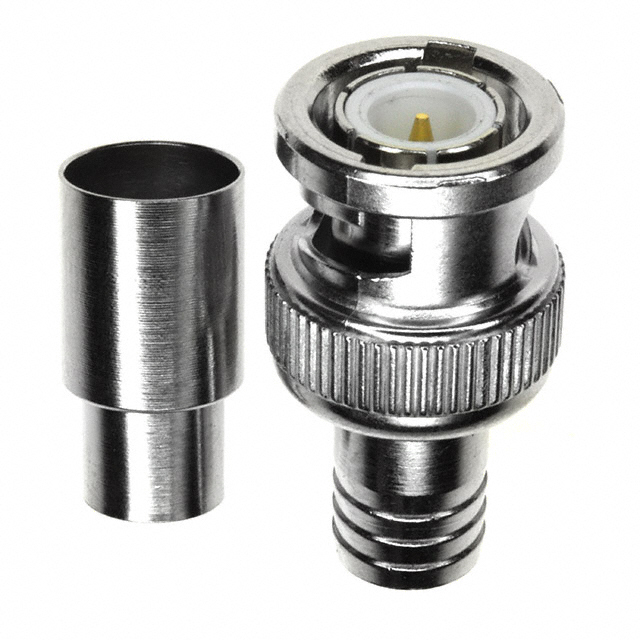

Cinch Connectivity Solutions AIM-Cambridge CP882	Male Pin Plug	50 Ohm	Push On	Brass	BNC	Silver	4 GHz	Free Hanging (In-Line)	Crimp	Bayonet Lock	1	62 RG-59	Brass	500 V	Connector Sleeve	2 pcs	Polymethylpentene (PMP)	-55 °C	85 °C	Nickel	Gold										500 cycles

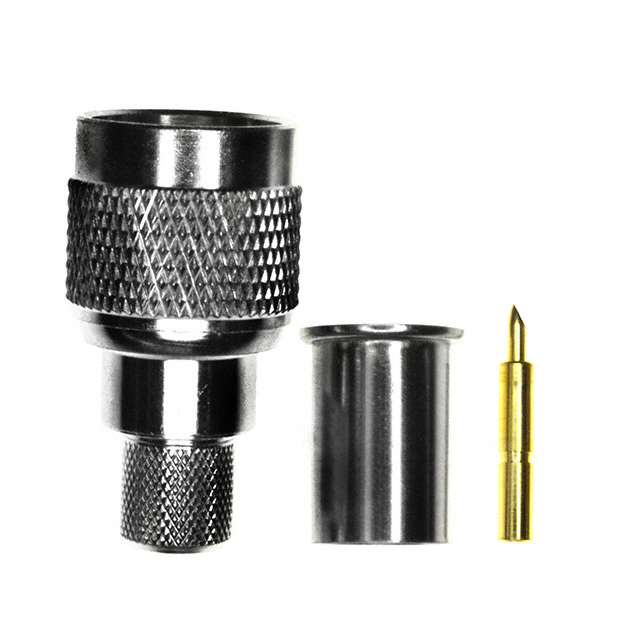

Cinch Connectivity Solutions AIM-Cambridge CPN8	Male Pin Plug	50 Ohm	Crimp Solder	Brass	N Type	Silver	11 GHz	Free Hanging (In-Line)	Crimp	Threaded	1	11 213 RG-8	Brass	500 V	Connector Contact Sleeve	3 pcs		-65 °C	165 °C	Nickel	Gold										500 cycles
