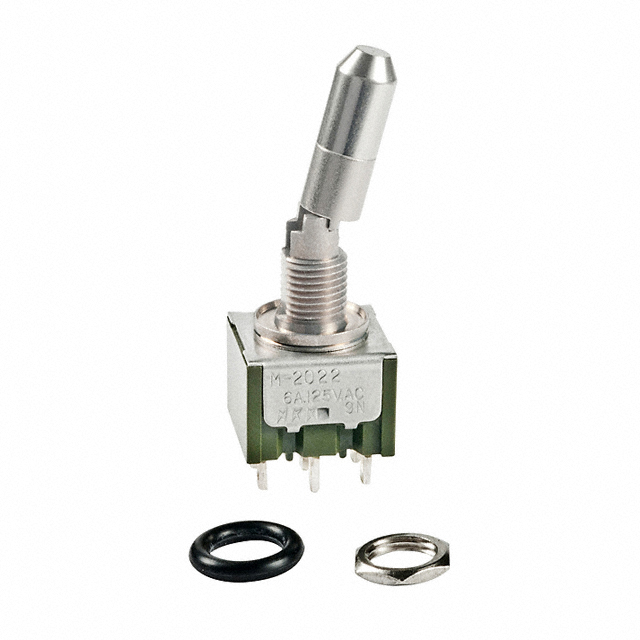

M2022L1 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Circuit | Mounting Type | Termination Style | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Bushing Thread | Switch Function | Illumination | Current Rating (Amps) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | 85 °C | -30 ░C | IP67 - Dust Tight Waterproof | DPDT | Panel Mount | Solder Lug | 6.5 mm | 125 V | 30 V | Locking Lever | 1/4-40 | On-On | Non-Illuminated | 4 A 6 A | Epoxy Sealed Terminals |
 NKK Switches | Brass Chrome Plated | 50000 Cycles | 85 °C | -30 ░C | DPDT | Right Angle Through Hole | PC Pin | 6.5 mm | 28 V | 28 V | Locking Lever | 1/4-40 | On-On | Non-Illuminated | 0.4 VA | Epoxy Sealed Terminals |
