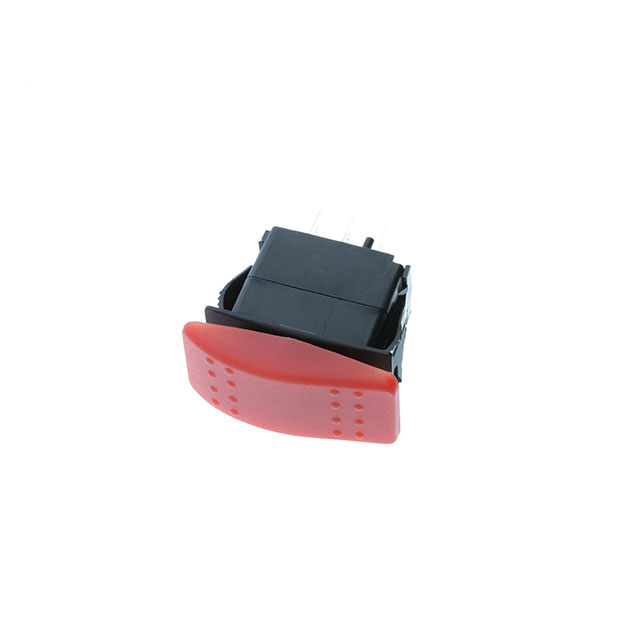

SRD1-1G Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPDT 21A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - DC | Termination Style | Color - Actuator/Cap | Voltage Rating - AC | Actuator Marking | Circuit | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Mounting Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Switch Function | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 10000 Steps | 6000 Cycles | 14 V | Quick Connect - 0.250" (6.3mm) | Red | 125 V | No Marking | SPDT | 36.8 mm | 21.2 mm | Panel Mount Snap-In | 20 A 21 A | 85 °C | -25 °C | IP56 - Dust Protected Water Resistant | Mom-Off-Mom | Convex (Reverse V) |
 Switch Components | 10000 Steps | 6000 Cycles | 14 V | Quick Connect - 0.250" (6.3mm) | Black | 125 V | No Marking | SPDT | 36.8 mm | 21.2 mm | Panel Mount Snap-In | 20 A 21 A | 85 °C | -25 °C | IP56 - Dust Protected Water Resistant | Mom-Off-Mom | Convex (Reverse V) |
