68758 Series

Catalog

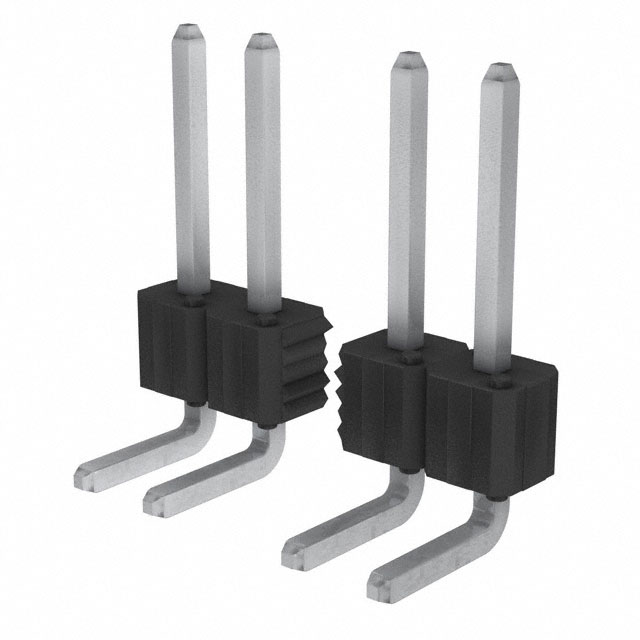

SINGLE ROW RIGHT ANGLE

Part	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Finish - Mating	Contact Shape	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Current Rating (Amps)	Shrouding	Fastening Type	Insulation Color	Contact Finish - Post
Amphenol ICC (FCI) 68758-114HLF	0.275 in	6.99 mm	Gold or Gold GXT™	Square	14	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	30 Áin	0.76 Ám	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black
Amphenol ICC (FCI) 68758-408HLF	0.275 in	6.99 mm		Square	8	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	100 çin	2.54 çm	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black	Tin
Amphenol ICC (FCI) 68758-422HLF	0.275 in	6.99 mm		Square	22 positions	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	100 çin	2.54 çm	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black	Tin
Amphenol ICC (FCI) 68758-136	0.275 in	6.99 mm	Gold or Gold GXT™	Square	36	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	30 Áin	0.76 Ám	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black
Amphenol ICC (FCI) 68758-236	0.275 in	6.99 mm	Gold or Gold GXT™	Square	36	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All			0.12 in	3.05 mm	Solder	Phosphor Bronze	15 µin	0.38 µm	Through Hole Right Angle	Male Pin		Unshrouded	Push-Pull	Black
Amphenol ICC (FCI) 68758-129HLF	0.275 in	6.99 mm	Gold or Gold GXT™	Square	29	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	30 Áin	0.76 Ám	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black
Amphenol ICC (FCI) 68758-104HLF	0.275 in	6.99 mm	Gold or Gold GXT™	Square	4	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	30 Áin	0.76 Ám	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black
Amphenol ICC (FCI) 68758-124HLF	0.275 in	6.99 mm	Gold or Gold GXT™	Square	24	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	30 Áin	0.76 Ám	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black
Amphenol ICC (FCI) 68758-425HLF	0.275 in	6.99 mm		Square		Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All	125 °C	-65 ░C	0.12 in	3.05 mm	Solder	Phosphor Bronze	100 çin	2.54 çm	Through Hole Right Angle	Male Pin	3 A	Unshrouded	Push-Pull	Black	Tin
Amphenol ICC (FCI) 68758-436	0.275 in	6.99 mm		Square	36	Header	0.1 in	2.54 mm	0.095 in	2.41 mm	UL94 V-0	1	All			0.12 in	3.05 mm	Solder	Phosphor Bronze	100 çin	2.54 çm	Through Hole Right Angle	Male Pin		Unshrouded	Push-Pull	Black
