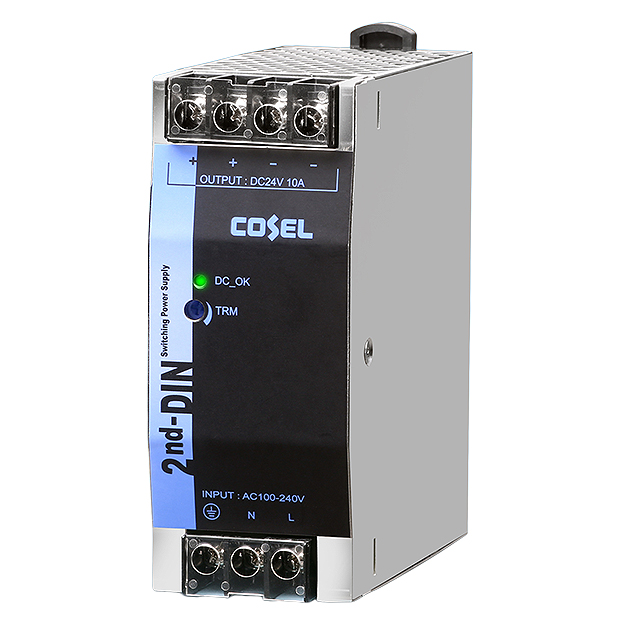

KLNA240 Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 240W
| Part | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Number of Outputs | Features | Input Type | Approval Agency | Voltage - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Efficiency | Power (Watts) | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Isolation | Applications | Standard Number | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 264 VAC | 85 VAC | 1 | Adjustable Output PFC Universal Input | AC | FCC | 24 V | -20 ░C | 70 °C | 90 % | 240 Watts | 10 A | 4.77 in | 1.97 in | 50 mm | 4.53 " | 115.1 mm | 121.2 mm | 3000 V | ITE (Commercial) | 60950-1 | |
 Cosel USA, Inc. | 264 VAC | 85 VAC | 1 | Adjustable Output PFC Universal Input | AC | FCC | 48 V | -20 ░C | 70 °C | 90 % | 240 Watts | 4.77 in | 1.97 in | 50 mm | 4.53 " | 115.1 mm | 121.2 mm | 3000 V | ITE (Commercial) | 60950-1 | 5 A |
