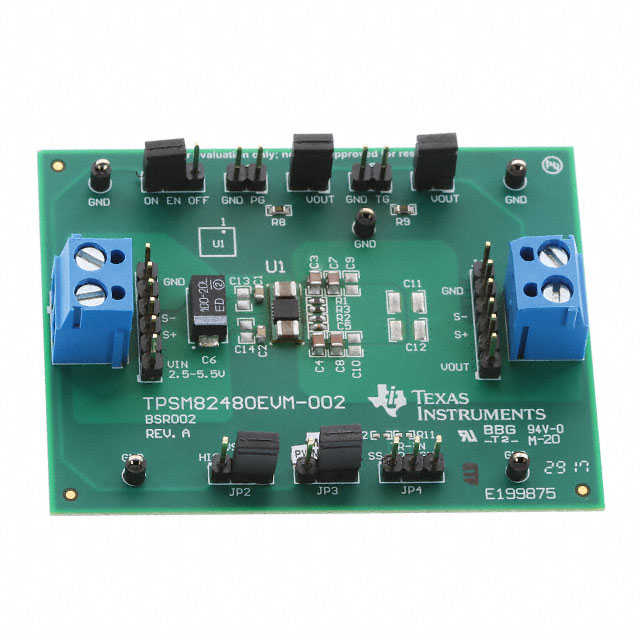

TPSM82480 Series

6-A, 5.5-V Input step-down power module with PG, MODE, and VSEL options

Catalog

6-A, 5.5-V Input step-down power module with PG, MODE, and VSEL options

Part	Features	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Current - Output (Max) [Max]	Mounting Type	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Package / Case	Number of Outputs

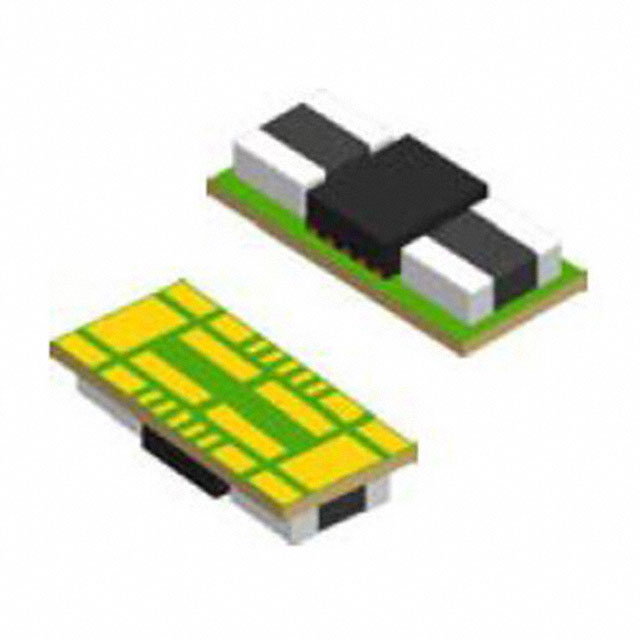

Texas Instruments TPSM82480MOPR	OCP OTP SCP UVLO	5.5 V	-40 °C	125 °C	ITE (Commercial)	5.5 V	0.6 V	2.4 V	7.9 mm	0.06 "	0.14 "	0.31 "	3.6 mm	1.6 mm	Non-Isolated PoL Module	6 A	Surface Mount	7.9	24-QFM	3.6	24-SMD Module	1

Catalog

6-A, 5.5-V Input step-down power module with PG, MODE, and VSEL options

Key Features

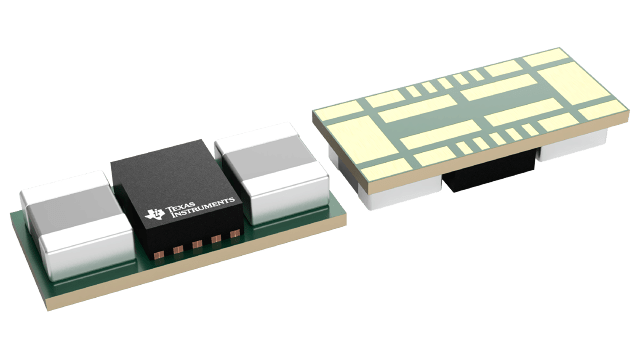

• Ultra small 3.6 × 7.9 × 1.55 mm power moduleCISPR11 Class B compliantFeedback voltage accuracy: ±1%Input voltage range: 2.4 V to 5.5 VOutput voltage range: 0.6 V to 5.5 VOutput current: 6-A with no derating at TA= 85 °CTypical quiescent current: 23 µAOutput voltage select (two user-defined values)Phase-shifted operationAutomatic power save mode or forced PWM optionAdjustable soft-start and trackingPower good and thermal good outputsUndervoltage lockout protectionOvercurrent and short-circuit protectionOver-temperature protectionOperating temperature range: –40°C to 125°CUltra small 3.6 × 7.9 × 1.55 mm power moduleCISPR11 Class B compliantFeedback voltage accuracy: ±1%Input voltage range: 2.4 V to 5.5 VOutput voltage range: 0.6 V to 5.5 VOutput current: 6-A with no derating at TA= 85 °CTypical quiescent current: 23 µAOutput voltage select (two user-defined values)Phase-shifted operationAutomatic power save mode or forced PWM optionAdjustable soft-start and trackingPower good and thermal good outputsUndervoltage lockout protectionOvercurrent and short-circuit protectionOver-temperature protectionOperating temperature range: –40°C to 125°C

Description

The TPSM82480 is a synchronous step-down DC-DC converter module for low profile point-of-load power supplies. The input voltage range of 2.4 V to 5.5 V enables operation from typical 3.3-V or 5-V interface supplies as well as from backup circuits dropping down as low as 2.4 V. The output current is up to 6 A continuously provided by two phases of 3 A each, which run out-of-phase, reducing pulse current noise significantly. The TPSM82480 provides an automatically entered power save mode to maintain high efficiency down to very light loads. This incorporates an automatic phase adding and shedding feature using both or only one phase according to the actual load. The power save mode can be switched off using the MODE feature. The device offers a power good signal and an adjustable soft-start period. Also, the device features a thermal good signal to indicate excessive internal temperature. The output voltage can be changed to a preselected value by VSEL pin. TPSM82480 is able to operate in 100% duty cycle mode. The TPSM82480 is a synchronous step-down DC-DC converter module for low profile point-of-load power supplies. The input voltage range of 2.4 V to 5.5 V enables operation from typical 3.3-V or 5-V interface supplies as well as from backup circuits dropping down as low as 2.4 V. The output current is up to 6 A continuously provided by two phases of 3 A each, which run out-of-phase, reducing pulse current noise significantly. The TPSM82480 provides an automatically entered power save mode to maintain high efficiency down to very light loads. This incorporates an automatic phase adding and shedding feature using both or only one phase according to the actual load. The power save mode can be switched off using the MODE feature. The device offers a power good signal and an adjustable soft-start period. Also, the device features a thermal good signal to indicate excessive internal temperature. The output voltage can be changed to a preselected value by VSEL pin. TPSM82480 is able to operate in 100% duty cycle mode.
