EF11.1089 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PWR ENT MOD RCPT IEC320-C20 PNL
| Part | Termination | Termination | Termination | Current Rating - Circuit Breaker | Panel Thickness | Panel Thickness | Connector Style | Ingress Protection | Approval Agency | Current Rating - Appliance Inlet | Voltage Rating - Appliance Inlet | Connector Type | Material Flammability Rating | Filter Type | Mounting Type | Accomodates a Fuse | Switch Features | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

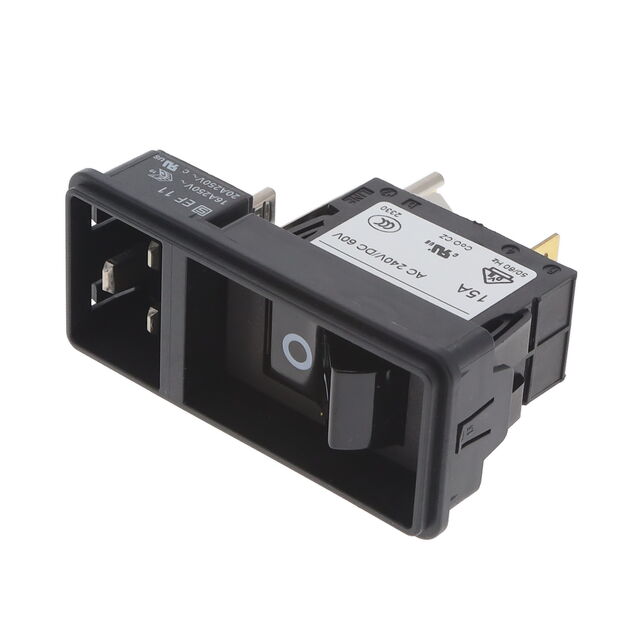

 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | 15 A | 1.5 mm | 0.059 in | IEC 320-C20 | IP40 | cULus ENEC | 10 A | 250 VAC | Receptacle Male Blades - Module | UL94 V-0 | Unfiltered - Commercial | Panel Mount Snap-In | Circuit Breaker Switch On-Off | 32.5 mm | 79.5 mm | |

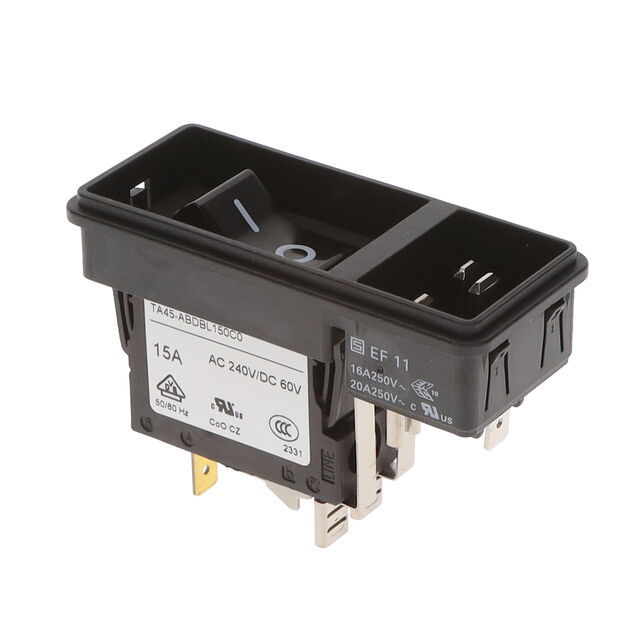

 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | 15 A | 2 mm | 0.079 in | IEC 320-C20 | IP40 | cULus ENEC | 10 A | 250 VAC | Receptacle Male Blades - Module | UL94 V-0 | Unfiltered - Commercial | Panel Mount Snap-In | Circuit Breaker Switch On-Off | 32.5 mm | 79.5 mm | |

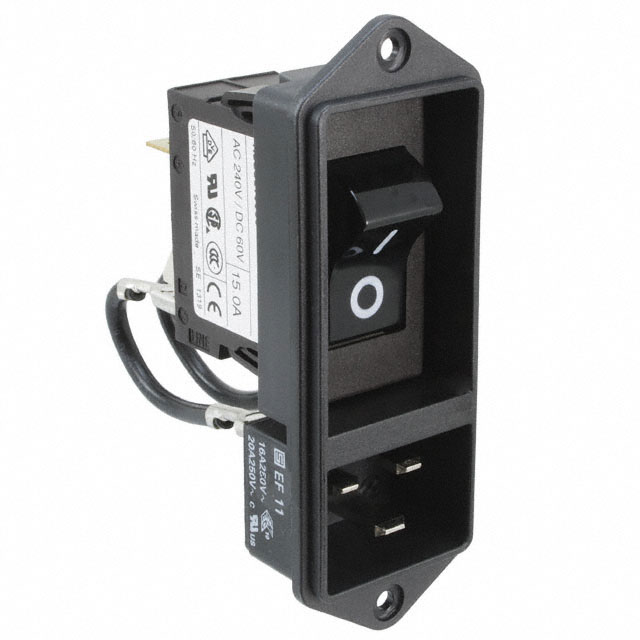

 SCHURTER Inc. | 6.3 mm | Quick Connect | 0.25 " | 15 A | IEC 320-C20 | IP40 | cULus ENEC | 10 A | 250 VAC | Receptacle Male Blades - Module | UL94 V-0 | Unfiltered - Commercial | Flange Panel Mount | Circuit Breaker Switch On-Off | 32.5 mm | 79.5 mm |
