044812 Series

Manufacturer: Molex

Catalog

CONN RCPT 12POS 0.1 GOLD PCB

Part	Contact Material	Insulation Material	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Contact Finish - Mating	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Applications	Contact Type	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Shape	Connector Type	Voltage Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
Molex 0448120050	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	12	Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	30 Áin	0.76 Ám

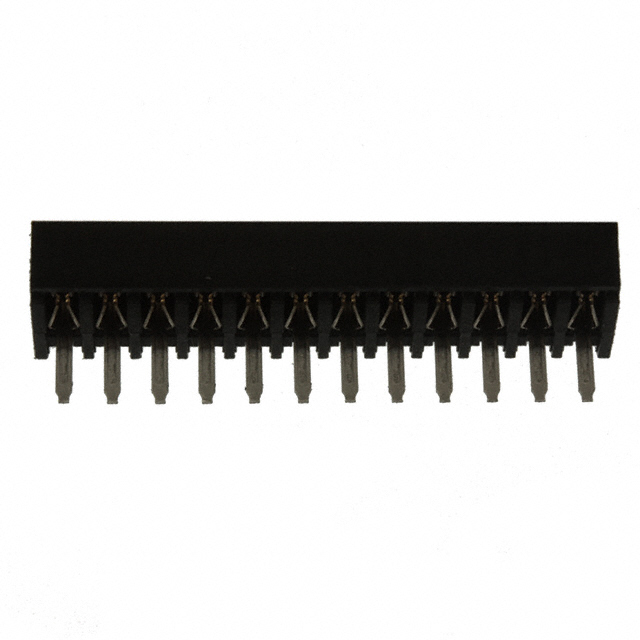

Molex 0448120030	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	12	Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	15 µin	0.38 µm

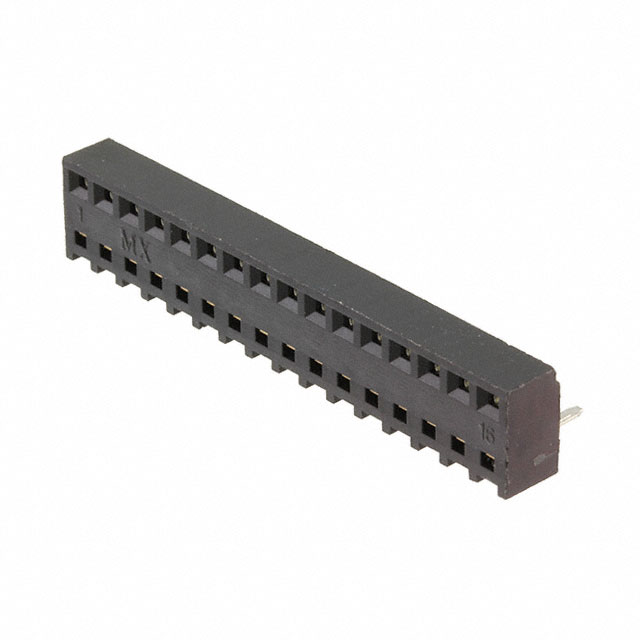

Molex 0448120016	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole			Solder	0.177 in	4.5 mm	5.08 µm	200 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	200 µin	5.08 µm	16
Molex 0448120048	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	10	Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	30 Áin	0.76 Ám
Molex 0448120020	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	2	Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	15 µin	0.38 µm
Molex 0448120043	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole		Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	30 Áin	0.76 Ám

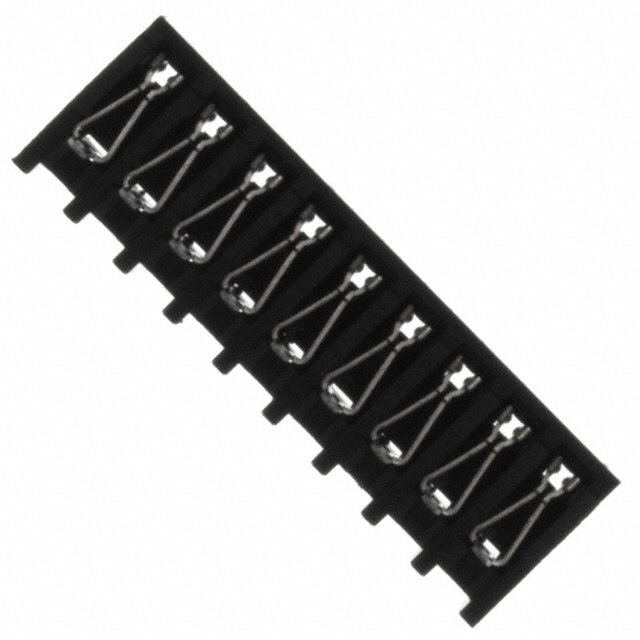

Molex 0448120027	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	9	Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	15 µin	0.38 µm
Molex 0448120011	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	11		Solder	0.177 in	4.5 mm	5.08 µm	200 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	200 µin	5.08 µm

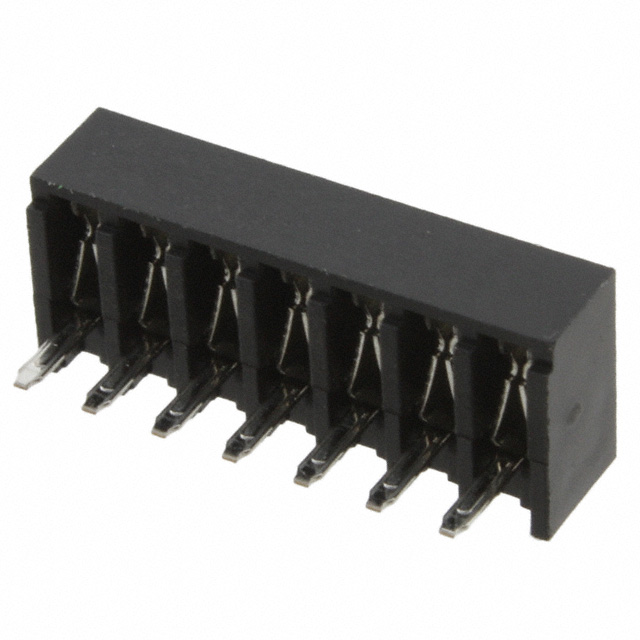

Molex 0448120007	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	7		Solder	0.177 in	4.5 mm	5.08 µm	200 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	200 µin	5.08 µm
Molex 0448120052	Brass Alloy	Glass Filled Nylon Polyamide (PA)	Black	-40 °C	105 ░C	Through Hole	14	Gold	Solder	0.177 in	4.5 mm	2.54 µm	100 µin	1	Automotive General Purpose Medical Telecommunications	Female Socket	All	3.46 mm	0.136 "	Square	Receptacle Bottom or Top Entry	176 VDC 250 VAC	Push-Pull	0.1 in	2.54 mm	UL94 V-0	Tin	30 Áin	0.76 Ám
