TLV62090 Series

3A High Efficiency Step Down Converter in 3x3mm QFN Package

Catalog

3A High Efficiency Step Down Converter in 3x3mm QFN Package

Part	Voltage - Output	Main Purpose	Outputs and Type	Outputs and Type	Regulator Topology	Board Type	Frequency - Switching	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Utilized IC / Part	Supplied Contents	Function	Mounting Type	Synchronous Rectifier	Voltage - Output (Max) [Max]	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Output (Min/Fixed)	Output Configuration	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Package / Case	Number of Outputs

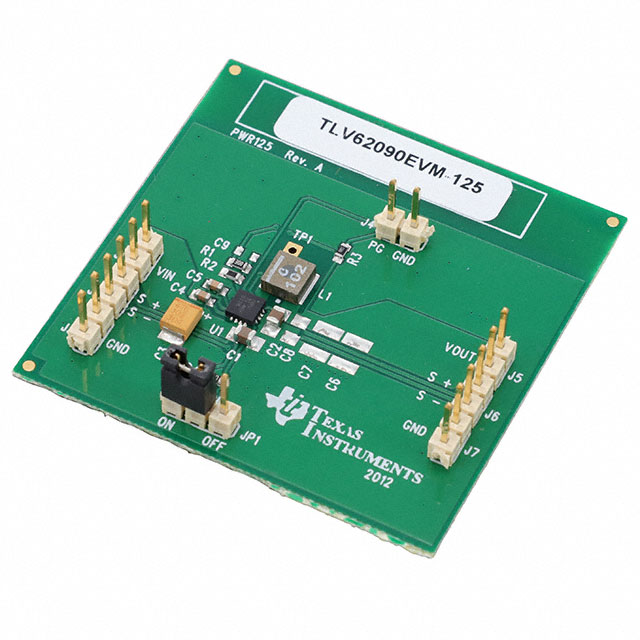

Texas Instruments TLV62090EVM-125	1.8 V	DC/DC Step Down	Non-Isolated	1	Buck	Fully Populated	1.4 MHz	3 A	6 V	2.5 V	TLV62090	Board(s)
Texas Instruments TLV62090RGTR							1.4 MHz	3 A					Step-Down	Surface Mount		5.5 V	Buck	85 °C	-40 °C	Adjustable	0.8 V	Positive	5.5 V	2.5 V	16-VQFN (3x3)	16-VFQFN Exposed Pad	1

Catalog

3A High Efficiency Step Down Converter in 3x3mm QFN Package

Key Features

• 2.5 V to 5.5 V Input Voltage RangeDCS-Control™Up To 98% EfficiencyPower Save Mode20 µA Operating Quiescent Current100% Duty Cycle for Lowest Dropout1.4 MHz Typical Switching Frequency0.8 V to VINAdjustable Output VoltageOutput Discharge FunctionAdjustable SoftstartHiccup Short Circuit ProtectionOutput Voltage TrackingPin-to-Pin Compatible with TPS62090, TLV62095 and TPS62095For Improved Feature Set, See TPS62090Create a Custom Design using the TLV62090 with theWEBENCH® Power Designer2.5 V to 5.5 V Input Voltage RangeDCS-Control™Up To 98% EfficiencyPower Save Mode20 µA Operating Quiescent Current100% Duty Cycle for Lowest Dropout1.4 MHz Typical Switching Frequency0.8 V to VINAdjustable Output VoltageOutput Discharge FunctionAdjustable SoftstartHiccup Short Circuit ProtectionOutput Voltage TrackingPin-to-Pin Compatible with TPS62090, TLV62095 and TPS62095For Improved Feature Set, See TPS62090Create a Custom Design using the TLV62090 with theWEBENCH® Power Designer

Description

The TLV62090 device is a high frequency synchronous step-down converter optimized for small solution size, high efficiency and suitable for battery powered applications. To maximize efficiency, the converter operates in pulse width modulation (PWM) mode with a nominal switching frequency of 1.4 MHz and it automatically enters power save mode operation at light load currents. When used in distributed power supplies and point of load regulation, the device allows voltage tracking to other voltage rails and tolerates output capacitors ranging from 10 µF up to 150 µF and beyond. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The output voltage start-up ramp is controlled by the softstart pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable (EN) and power good (PG) pins. In power save mode, the device operates with typically 20-µA quiescent current. Power save mode is entered automatically and seamlessly, maintaining high efficiency over the entire load current range. The device is available in a 3 mm × 3 mm 16-pin VQFN (RGT) package. The TLV62090 device is a high frequency synchronous step-down converter optimized for small solution size, high efficiency and suitable for battery powered applications. To maximize efficiency, the converter operates in pulse width modulation (PWM) mode with a nominal switching frequency of 1.4 MHz and it automatically enters power save mode operation at light load currents. When used in distributed power supplies and point of load regulation, the device allows voltage tracking to other voltage rails and tolerates output capacitors ranging from 10 µF up to 150 µF and beyond. Using the DCS-Control topology, the device achieves excellent load transient performance and accurate output voltage regulation. The output voltage start-up ramp is controlled by the softstart pin, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable (EN) and power good (PG) pins. In power save mode, the device operates with typically 20-µA quiescent current. Power save mode is entered automatically and seamlessly, maintaining high efficiency over the entire load current range. The device is available in a 3 mm × 3 mm 16-pin VQFN (RGT) package.
