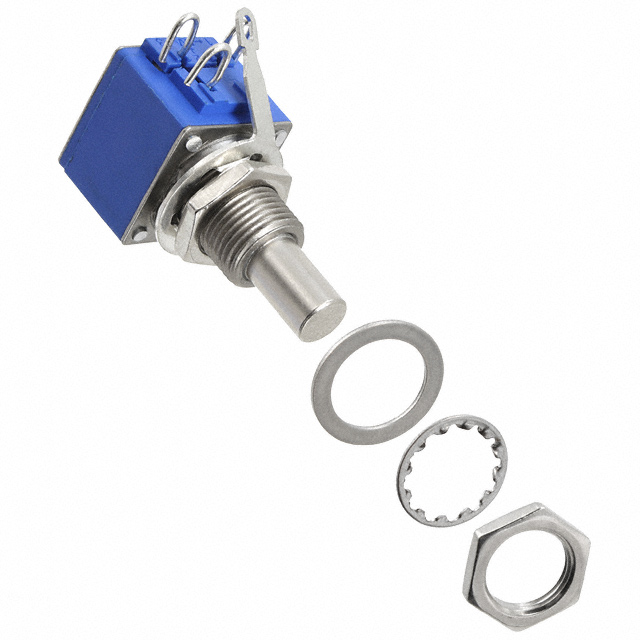

82A1D Series
Manufacturer: Bourns Inc.
Beta
⌘K
ROTARY POTENTIOMETER, CONDUCTIVE PLASTIC, 500 KOHM, 1 TURNS, LINEAR, 250 MW, ± 10%, 82 SERIES
| Part | Bushing Thread | Size - Body [y] | Size - Body [y] | Size - Body [x] | Size - Body [x] | Rotation | Resistance (Ohms) | Temperature Coefficient | Mounting Type | Actuator Type | Actuator Length [x] | Actuator Length [x] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Number of Turns | Termination Style | Tolerance | Adjustment Type | Taper | Built in Switch | Number of Gangs | Resistive Material | Power (Watts) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 3/8-32 | 0.625 " | 15.88 mm | 0.625 " | 15.88 mm | 300 ░ | 500 kOhms | 1000 ppm/°C | Panel Mount | Knurled and Slotted | 17.48 mm | 0.688 in | 0.235 in | 5.97 mm | 1 | Solder Hook | 10 % | User Defined | Logarithmic | None | 1 | Conductive Plastic | 0.25 W | 0.25 W |
