EPSA050250 Series

Manufacturer: CUI Inc.

Catalog

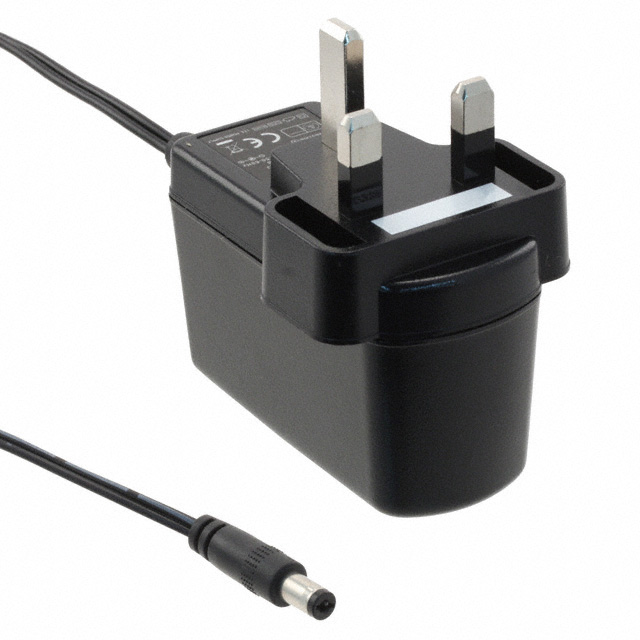

AC/DC WALL MOUNT ADAPTER 5V 12W

Part	Polarization	Current - Output (Max) [Max]	Cord Length	Cord Length	Input Type	Standard Number	Operating Temperature [Max]	Power (Watts)	Approval Agency	Input Connector	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Region Utilized	Applications	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Max]	Voltage - Input [Min]	No Load Power Consumption	Output Connector [z]	Form
CUI Inc. EPSA050250UB-P5P-EJ	Positive Center	2.5 A	1.5 m	59 in	Fixed Blade	60950-1	40 °C	12 W	CE cULus GS TUV	BS 1363	Level V	1.85 in	47 mm	2.95 "	50 mm	1.97 in	75 mm	United Kingdom	ITE (Commercial)	5 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC
CUI Inc. EPSA050250UE-P6RP-EJ	Positive Center	2.5 A	1.83 m	72 in	Fixed Blade		40 °C	13 W	cULus	CEE 7/16	Level V	1.85 in	47 mm	2.95 "	50 mm	1.97 in	75 mm	Europe	ITE (Commercial)	5 V	Barrel Plug R/A	2.5 mm 5.5 mm		264 VAC	90 VAC	300 mW	9.5 mm	Wall Mount
CUI Inc. EPSA050250U-P5P-EJ	Positive Center	2.5 A	1.83 m	72 in	Fixed Blade		40 °C	13 W	cULus	NEMA 1-15P	Level V	1.85 in	47 mm	2.95 "	50 mm	1.97 in	75 mm	North America	ITE (Commercial)	5 V	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	264 VAC	90 VAC	300 mW		Wall Mount
CUI Inc. EPSA050250U-P6P-EJ	Positive Center	2.5 A	1.83 m	72 in	Fixed Blade		40 °C	13 W	cULus	NEMA 1-15P	Level V	1.85 in	47 mm	2.95 "	50 mm	1.97 in	75 mm	North America	ITE (Commercial)	5 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	264 VAC	90 VAC	300 mW		Wall Mount
CUI Inc. EPSA050250UE-P6P-EJ	Positive Center	2.5 A	1.83 m	72 in	Fixed Blade		40 °C	13 W	cULus	CEE 7/16	Level V	1.85 in	47 mm	2.95 "	50 mm	1.97 in	75 mm	Europe	ITE (Commercial)	5 V	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	264 VAC	90 VAC	300 mW		Wall Mount
