7029-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

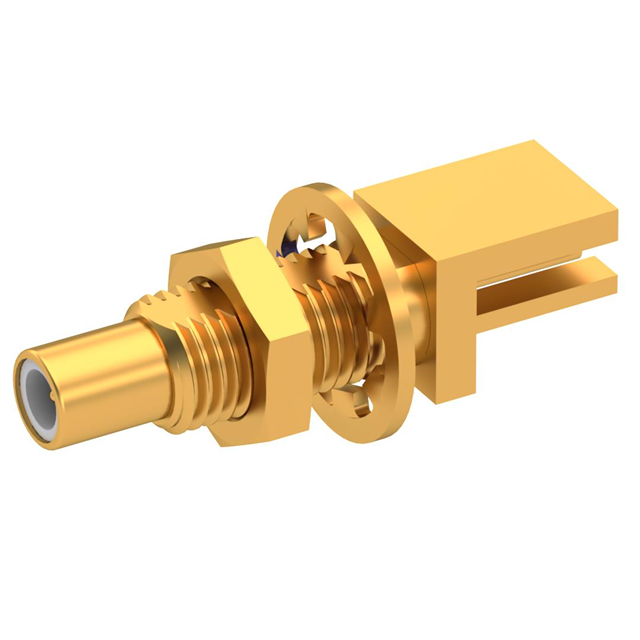

SSMC M STR EDGE
| Part | Includes | Body Material | Voltage Rating | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Dielectric Material | Connector Type | Number of Ports | Connector Style | Fastening Type | Impedance | Housing Color | Shield Termination | Mounting Feature | Frequency - Max [Max] | Mounting Type | Contact Termination | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | Brass | 250 V | Gold | Gold | -65 ░C | 165 °C | 500 | Polytetrafluoroethylene (PTFE) | Jack Male Pin | 1 | SSMC | Snap-On | 50 Ohms | Gold | Solder | Bulkhead - Front Side Nut | 12.4 GHz | Board Edge End Launch Panel Mount | Solder | Beryllium Copper |
