302-S14 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

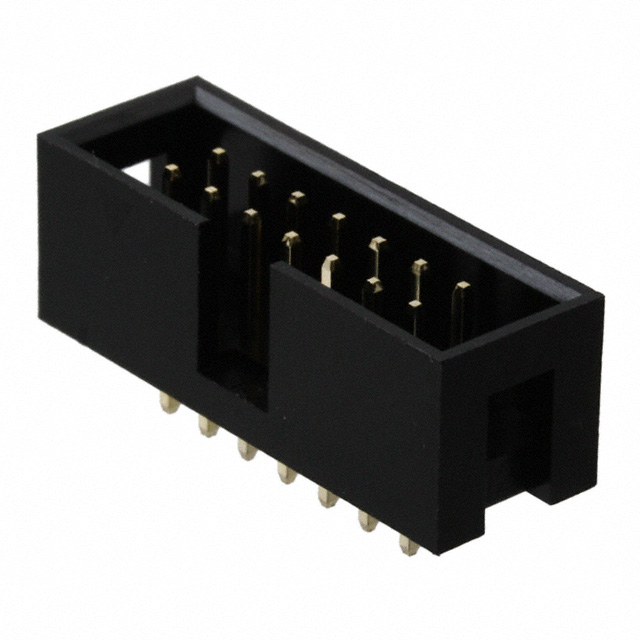

CONN HEADER VERT 14POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Number of Positions Loaded | Material Flammability Rating | Insulation Height | Insulation Height | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Number of Positions | Style | Number of Rows [custom] | Features | Contact Length - Post [x] | Contact Length - Post [x] | Termination | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Shrouding | Insulation Color | Current Rating (Amps) | Fastening Type | Voltage Rating | Contact Shape | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | 1.25 µin | 0.032 µm | Male Pin | All | UL94 V-0 | 0.358 " | 9.1 mm | Through Hole | 0.1 in | 2.54 mm | Brass | 14 | Board to Cable/Wire | 2 | Keying Slot | 0.122 in | 3.1 mm | Solder | Gold | 0.1 " | 2.54 mm | Flash | Polyester Glass Filled | -40 C | 105 ░C | Gold | Shrouded - 4 Wall | Black | 3 A | Push-Pull | 250 V | Square | Header |
