1954097 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN SSL RCPT 2POS 4MM SOLDER
| Part | Connector Type | Pitch [x] | Pitch [x] | Housing Material | Number of Positions | Wire Gauge | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Material | Housing Color | Mounting Type | Style | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

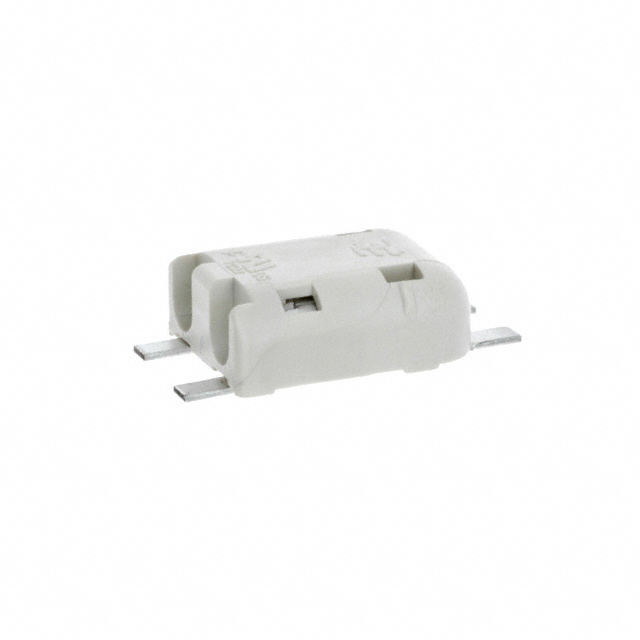

 TE Connectivity Raychem Cable Protection | Poke-In Wire Receptacle | 4 mm | 0.157 in | Liquid Crystal Polymer (LCP) | 2 | 18 AWG 20 AWG 22 AWG | Tin | -40 °C | 105 ░C | Solder | Copper Alloy | White | Surface Mount Right Angle | Board to Cable/Wire | 4 A | 250 VDC |

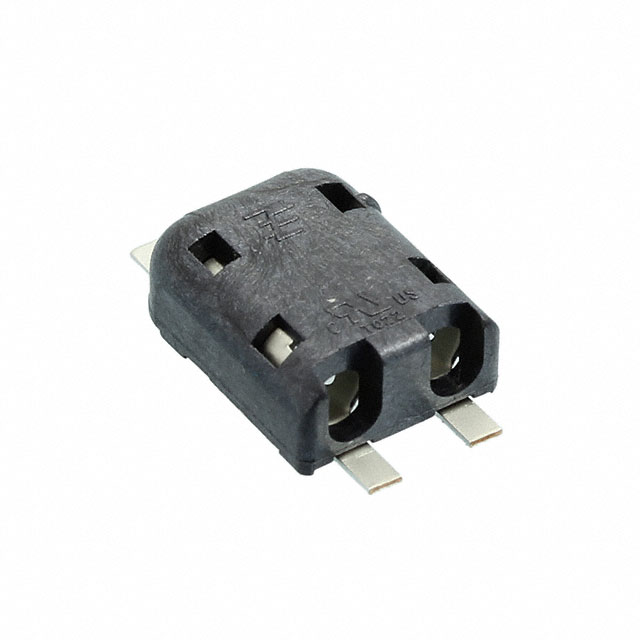

 TE Connectivity Raychem Cable Protection | Poke-In Wire Receptacle | 4 mm | 0.157 in | Liquid Crystal Polymer (LCP) | 2 | 18 AWG 20 AWG 22 AWG | Tin | -40 °C | 105 ░C | Solder | Copper Alloy | Black | Surface Mount Right Angle | Board to Cable/Wire | 4 A | 250 VDC |
