ECLAMP Series

Catalog

IC,EMI FILTER,LLCC,12PIN,PLASTIC

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Resistance - Channel (Ohms)	Applications	Values	Number of Channels [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Attenuation Value	Height [z]	Height [z]	Technology	Filter Order	Mounting Type	Package / Case	Type	Supplier Device Package	Number of Circuits	Height	Height

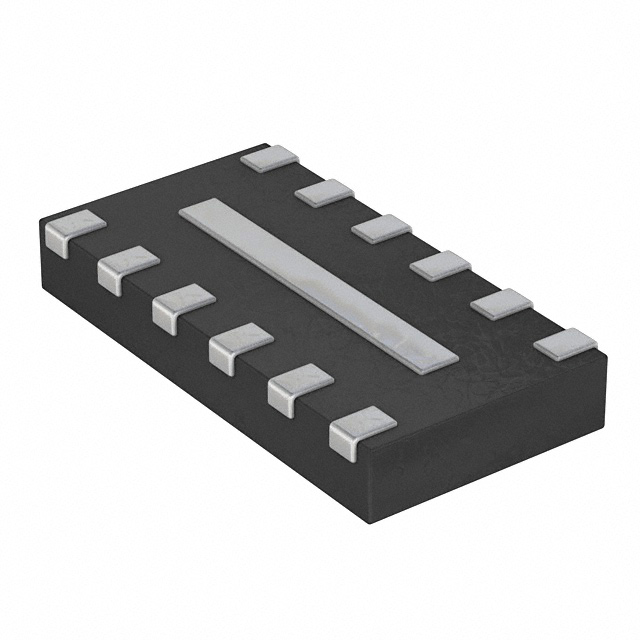

Semtech Corporation ECLAMP2376K.TCT	0.098 in	1.3 mm	2.5 mm	0.051 in	100 Ohms	Data Lines for Mobile Devices	11 pF 100 Ohms	6	85 °C	-40 C	30 dB	0.55 mm	0.022 in	RC (Pi)	2	Surface Mount	12-UFDFN Exposed Pad	Low Pass
Semtech Corporation ECLAMP3202A.TCT						General Purpose								Mixed Technology		Surface Mount	SOT-563 SOT-666		SC-89 (SOT-666)	2

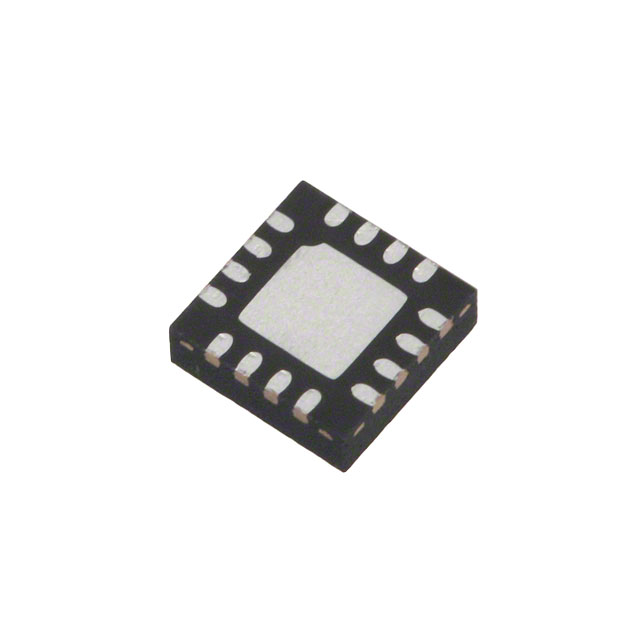

Semtech Corporation ECLAMP2357N.TCT	0.118 "	3 mm	3 mm	0.118 in	100 Ohms	Data Lines for Mobile Devices	12 pF 100 Ohms	6	85 °C	-40 C	20 dB			RC (Pi)	2	Surface Mount	16-VFQFN Exposed Pad	Low Pass			1 mm	0.039 in
