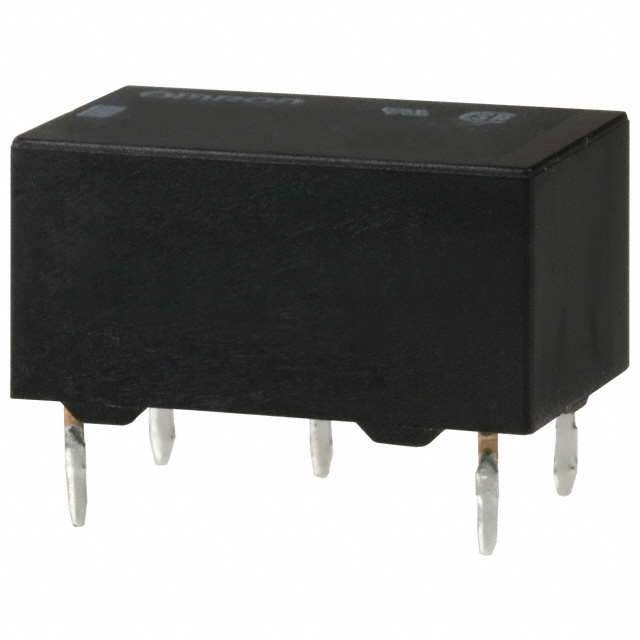

G6E-134 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 2A 48V
| Part | Termination Style | Coil Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Seal Rating | Must Operate Voltage | Contact Material | Mounting Type | Must Release Voltage | Coil Voltage | Relay Type | Coil Current | Operate Time | Contact Rating (Current) | Release Time | Switching Voltage | Coil Type | Contact Form | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | PC Pin | 5.76 kOhms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 33.6 VDC | Gold (Au) Silver (Ag) | Through Hole | 4.8 VDC | 48 VDC | General Purpose | 8.3 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 125 Ohms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 3.5 VDC | Gold (Au) Silver (Ag) | Through Hole | 0.5 VDC | 5 VDC | General Purpose | 40 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 45 Ohms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 2.1 VDC | Gold (Au) Silver (Ag) | Through Hole | 0.3 VDC | General Purpose | 66.7 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA | |
Omron Electronics Inc-EMC Div | PC Pin | 405 Ohms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 6.3 VDC | Gold (Au) Silver (Ag) | Through Hole | 0.9 VDC | 9 VDC | General Purpose | 22.2 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 2.88 kOhms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 16.8 VDC | Gold (Au) Silver (Ag) | Through Hole | 2.4 VDC | 24 VDC | General Purpose | 8.3 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 360 Ohms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 8.4 VDC | Gold (Au) Silver (Ag) | Through Hole | 1.2 VDC | 12 VDC | General Purpose | 33.3 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 5.76 kOhms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 33.6 VDC | Gold (Au) Silver (Ag) | Through Hole | 4.8 VDC | 48 VDC | General Purpose | 8.3 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 2.88 kOhms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 16.8 VDC | Gold (Au) Silver (Ag) | Through Hole | 2.4 VDC | 24 VDC | General Purpose | 8.3 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 720 Ohms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 8.4 VDC | Gold (Au) Silver (Ag) | Through Hole | 1.2 VDC | 12 VDC | General Purpose | 16.7 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
Omron Electronics Inc-EMC Div | PC Pin | 5.76 kOhms | -40 °C | 70 °C | CSA UR | Sealed - Fully | 33.6 VDC | Gold (Au) Silver (Ag) | Through Hole | 4.8 VDC | 48 VDC | General Purpose | 8.3 mA | 5 ms | 2 A | 5 ms | 220 VDC 250 VAC | Non Latching | SPDT (1 Form C) | 440 W 500 VA |
