CCH25 Series
Manufacturer: Panduit Corp
Beta
⌘K

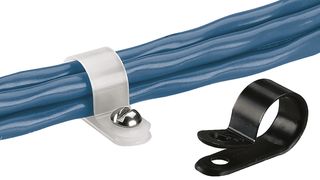

P CLIP, FIXED DIAMETER, BLACK, PK100
| Part | Bundle Center to Mounting Center | Bundle Center to Mounting Center | Opening Size [diameter] | Opening Size | Screw Size | Screw Size | Material Thickness | Material Thickness | Mounting Type | Material | Material Flammability Rating | Color | Panel Hole Size | Panel Hole Size | Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 0.46 " | 11.68 mm | 0.25 in | 6.35 mm | M5 | #10 | 0.05 in | 1.27 mm | Fastener | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | Black | 5.16 mm | 0.203 in | Clamp P-Type | Weather Resistant |
Panduit Corp | 0.46 " | 11.68 mm | 0.25 in | 6.35 mm | M5 | #10 | 0.05 in | 1.27 mm | Fastener | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | Natural | 5.16 mm | 0.203 in | Clamp P-Type | |
 Panduit Corp | 0.46 " | 11.68 mm | 0.25 in | 6.35 mm | M5 | #10 | 0.05 in | 1.27 mm | Fastener | Polyamide (PA66) Nylon 6/6 | UL94 V-2 | Natural | 5.16 mm | 0.203 in | Clamp P-Type |
