ISFCH5 Series
Manufacturer: Panduit Corp
Beta
⌘K

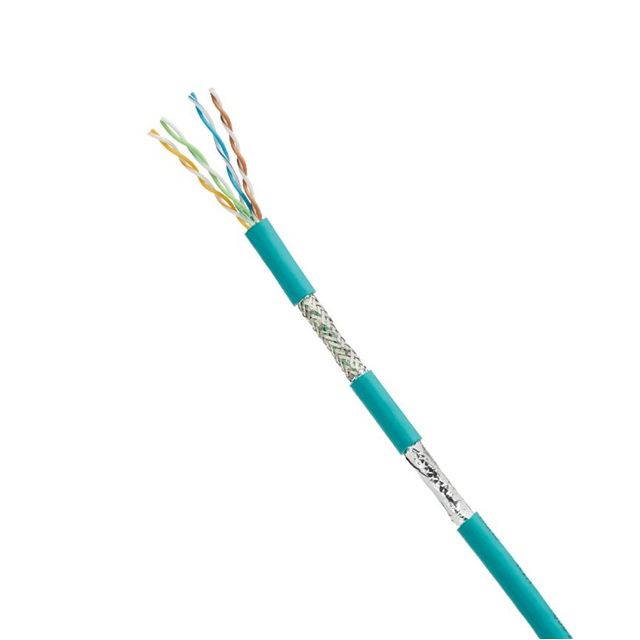

COPPER CABLE, IND, CAT5E, 4-PAIR
| Part | Wire Gauge | Shield Type | Conductor Insulation | Jacket (Insulation) Material | Features | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Number of Conductors | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | |||||||||||||||||
 Panduit Corp | 24 AWG | Braid Foil | High Density Polyethylene (HDPE) | Thermoplastic Elastomer (TPE) | Abrasion Resistant Oil Resistant UV Resistant | 7 | 24 AWG | 305 m | 1000.7 ft | 0.28 in | 7.11 mm | Copper | 8 | Teal | 80 °C | -40 C | Multi-Pair |
 Panduit Corp | 24 AWG | High Density Polyethylene (HDPE) | Thermoplastic Elastomer (TPE) | Abrasion Resistant Oil Resistant UV Resistant | 7 | 24 AWG | 305 m | 1000.7 ft | 0.24 " | 6.1 mm | Copper | 4 | Teal | 80 °C | -40 C | Multi-Pair |
