1734598 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 4POS 1.25MM

Part	Termination	Material Flammability Rating	Contact Finish - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Applications	Style	Contact Type	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]
TE Connectivity Raychem Cable Protection 4-1734598-4	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All	0.146 in	3.7 mm	4	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze
TE Connectivity Raychem Cable Protection 4-1734598-8	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All	0.146 in	3.7 mm	8	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze
TE Connectivity Raychem Cable Protection 1734598-8	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All			8	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze	1.7 mm	0.067 in

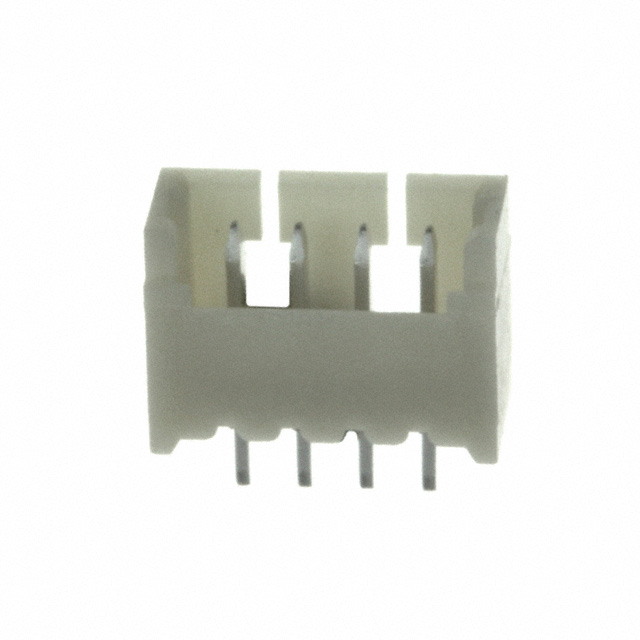

TE Connectivity Raychem Cable Protection 1734598-4	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All			4	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze	1.7 mm	0.067 in
TE Connectivity Raychem Cable Protection 2-1734598-3	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All	0.091 in	2.3 mm		1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze

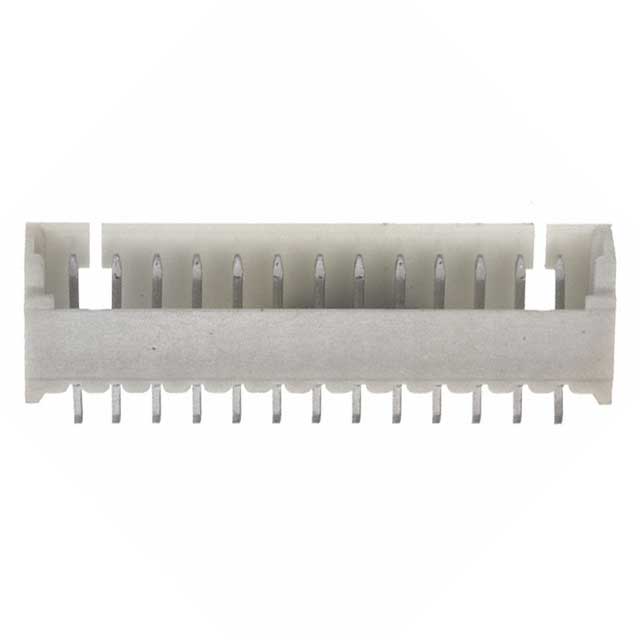

TE Connectivity Raychem Cable Protection 1-1734598-3	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All			13	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze	1.7 mm	0.067 in
TE Connectivity Raychem Cable Protection 2-1734598-4	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All	0.091 in	2.3 mm	4	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze
TE Connectivity Raychem Cable Protection 4-1734598-2	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All	0.146 in	3.7 mm	2	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze

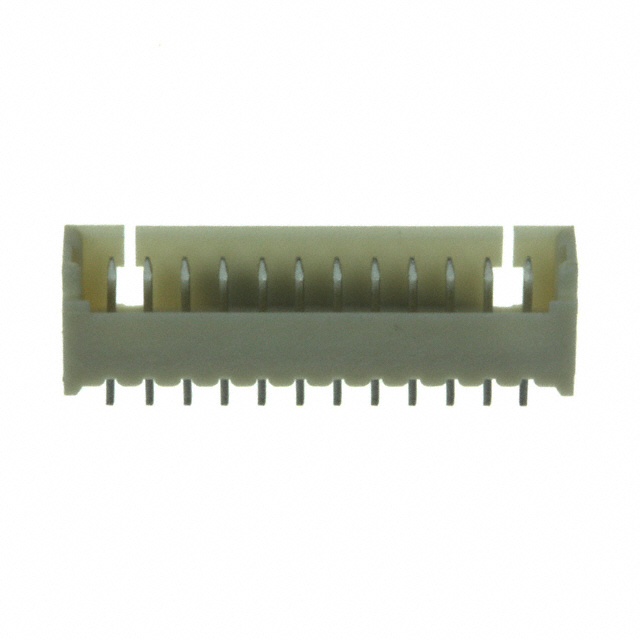

TE Connectivity Raychem Cable Protection 1-1734598-2	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All			12	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze	1.7 mm	0.067 in
TE Connectivity Raychem Cable Protection 1734598-6	Solder	UL94 V-0	Tin	Header	-25 °C	85 °C	Shrouded - 4 Wall	1.25 mm	0.049 in	Natural	All			6	1	0.185 in	4.7 mm	Square	Through Hole	100 VAC	120 µin	3.05 Ám	Polyamide (PA9T) Nylon 9T Glass Filled	Automotive General Purpose Industrial Medical	Board to Cable/Wire	Male Pin	Phosphor Bronze	1.7 mm	0.067 in
