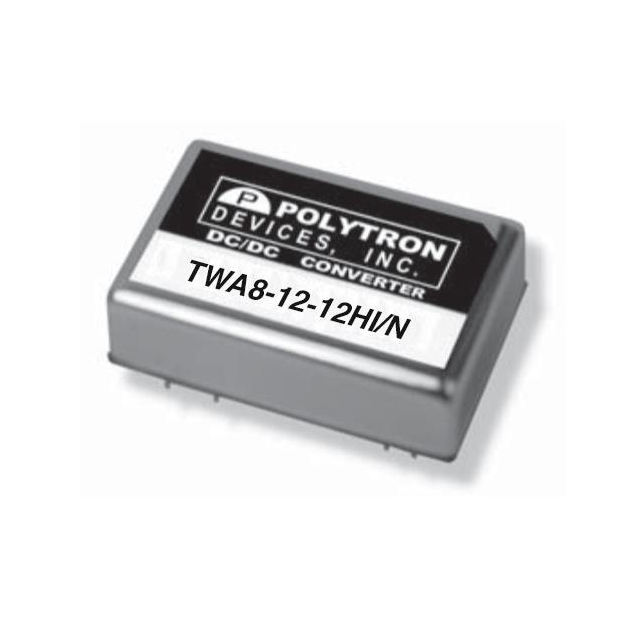

TWA8-12 Series
Manufacturer: Polytron
Beta
⌘K
DC DC CONVERTER +/-12V 8W
| Part | Applications | Power (Watts) | Voltage - Input (Max) [Max] | Mounting Type | Number of Outputs | Features | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Package / Case | Control Features | Current - Output (Max) | Type | Voltage - Output 2 | Voltage - Output 1 | Efficiency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Polytron | ITE (Commercial) | 8 W | 18 V | Through Hole | 2 | Remote On/Off | 9 V | 71 °C | -25 °C | 1.5 kV | 24-DIP Module 9 Leads | Active Low Enable | 333 mA | Isolated Module | -12 V | 12 V | 84 % | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in |
