842-029 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 29POS 0.100

Part	Material - Insulation	Termination Rows	Card Type	Flange Feature	Contact Type	Color	Read Out	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Gender	Pitch	Pitch	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Number of Rows	Contact Finish	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]

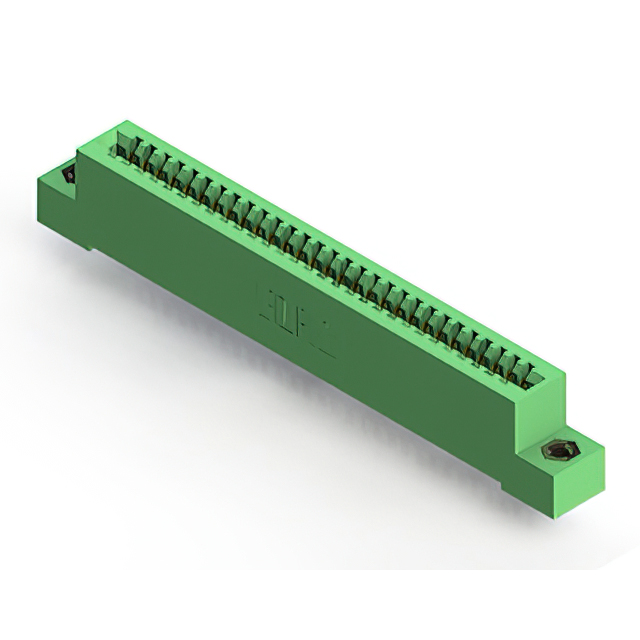

EDAC Inc. 842-029-521-108	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	1	Gold	29
EDAC Inc. 842-029-524-107	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	1	Gold	29

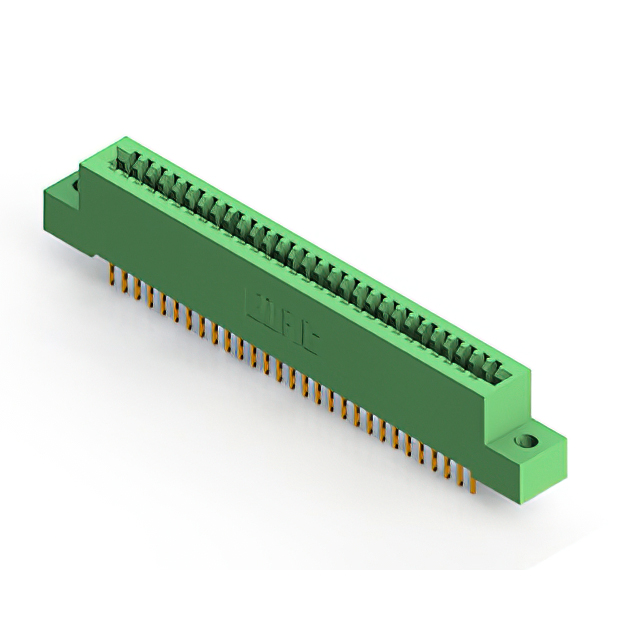

EDAC Inc. 842-029-558-102	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	125 °C	-40 C	Solder	1	Gold	29	3.25 mm	0.128 "

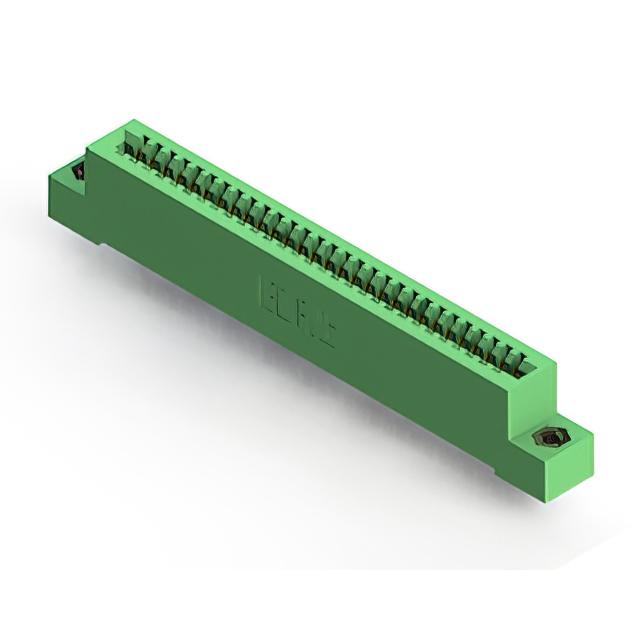

EDAC Inc. 842-029-500-108	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder Eyelet(s)	1	Gold	29
EDAC Inc. 842-029-542-102	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	1	Gold	29	3.25 mm	0.128 "
EDAC Inc. 842-029-520-107	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	1	Gold	29

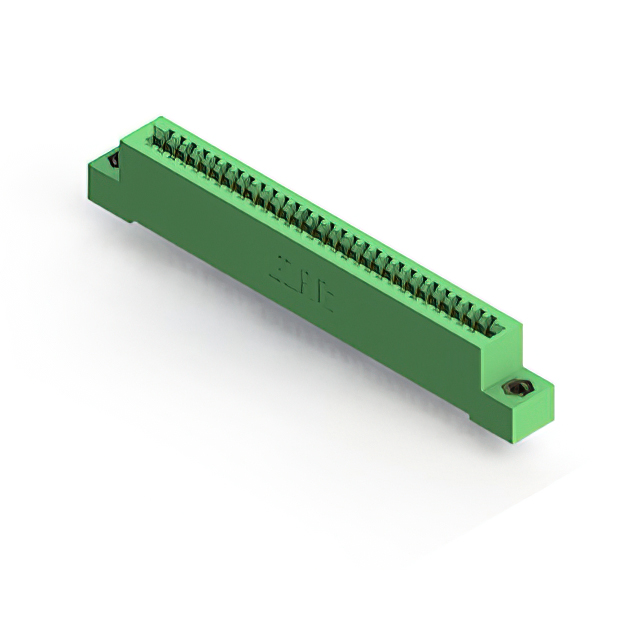

EDAC Inc. 842-029-541-108	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	1	Gold	29

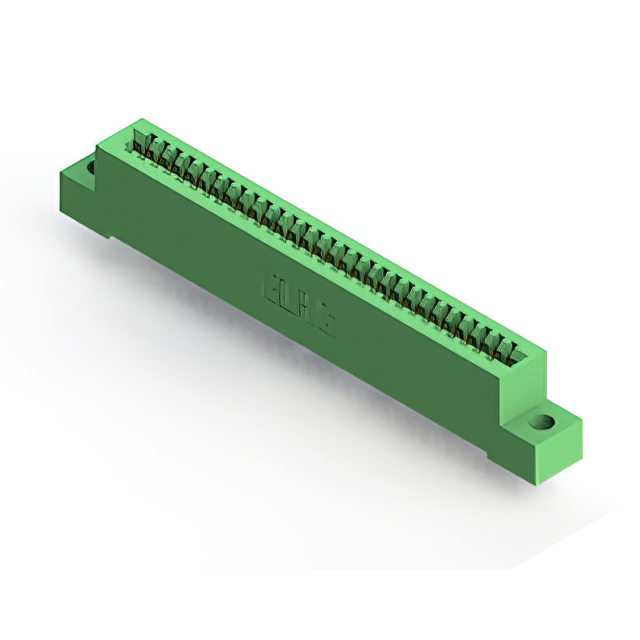

EDAC Inc. 842-029-523-104	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	1	Gold	29	3.96 mm	0.156 "
EDAC Inc. 842-029-544-112	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount Side Opening Unthreaded	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	1	Gold	29	3.25 mm	0.128 "

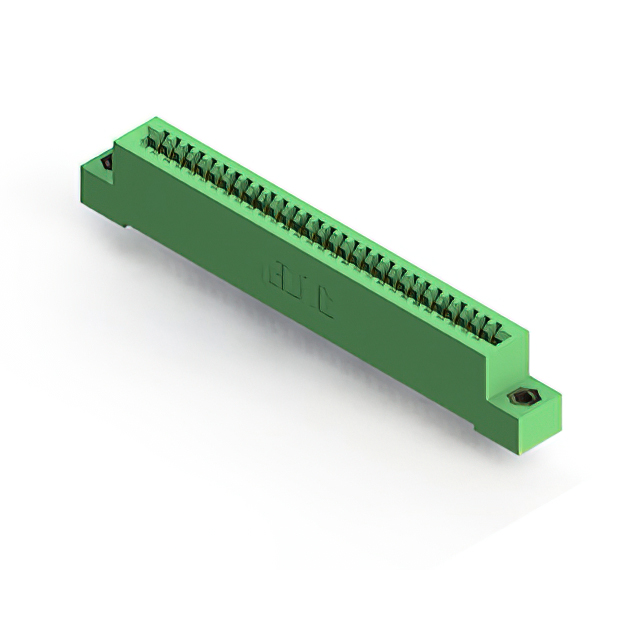

EDAC Inc. 842-029-542-107	Diallyl Phthalate (DAP)	1	Non Specified - Single Edge	Flush Mount M3 Threaded Insert Top Opening	Cantilever	Green	Single	0.25 Ám	10 Áin	29	Female	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	1	Gold	29
