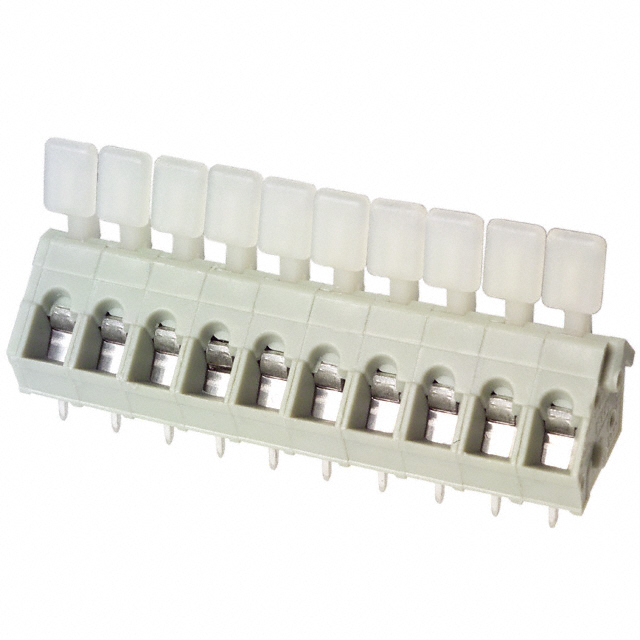

ED3001 Series

Catalog

TERM BLOCK 4POS 45DEG 5MM PCB

Part	Clamp Material - Plating	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Color	Mating Orientation	Mating Orientation	Number of Levels	Features	Wire Termination	Mounting Type	Voltage	Positions Per Level	Pitch	Pitch	Current	Contact Material - Plating	Positions Per Level [custom]

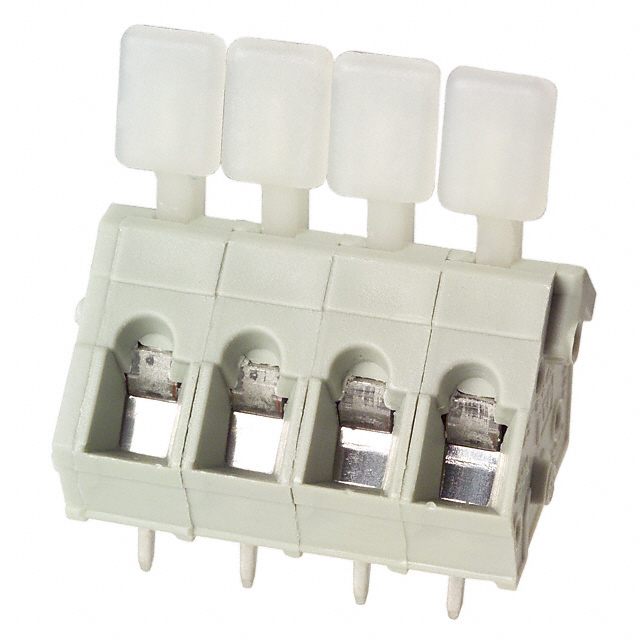

On Shore Technology Inc. ED3001/4-FD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	4	0.197 in	5 mm	16 A

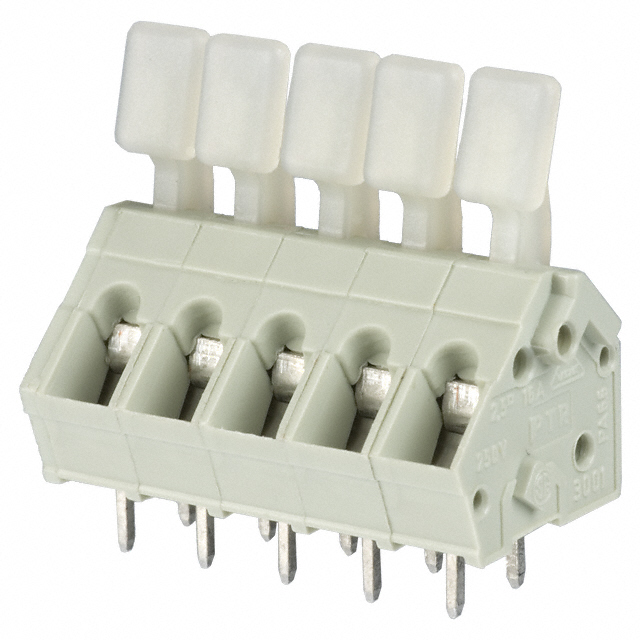

On Shore Technology Inc. ED3001/5-FD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	5	0.197 in	5 mm	16 A

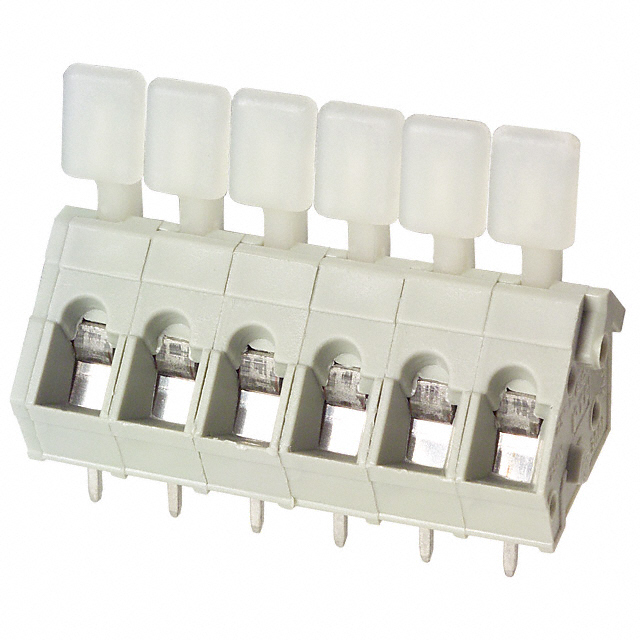

On Shore Technology Inc. ED3001/6-FD	Copper	Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	6	0.197 in	5 mm	16 A

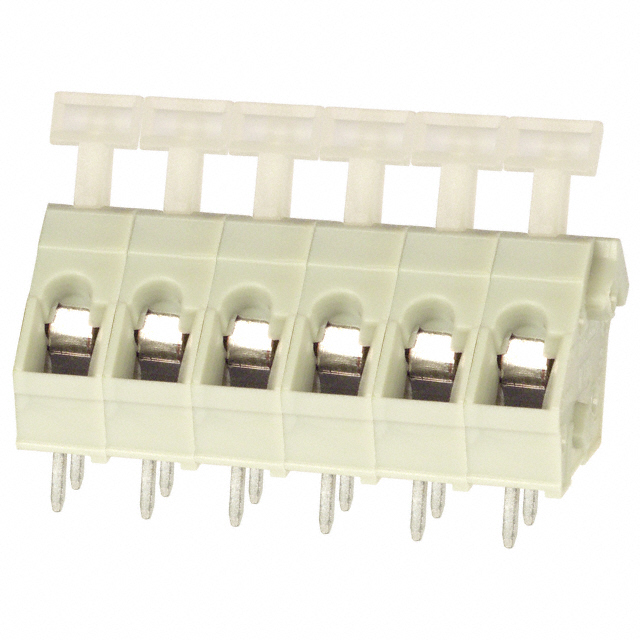

On Shore Technology Inc. ED3001/6-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	6	0.197 in	5 mm	16 A	Copper

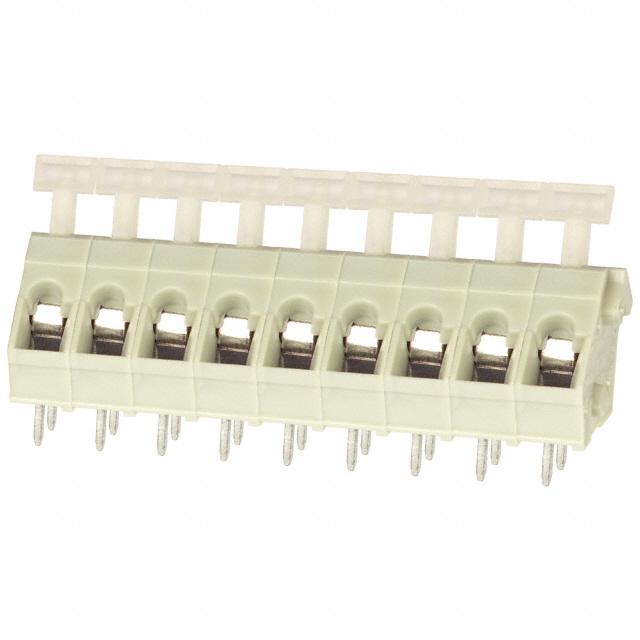

On Shore Technology Inc. ED3001/9-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	9	0.197 in	5 mm	16 A	Copper

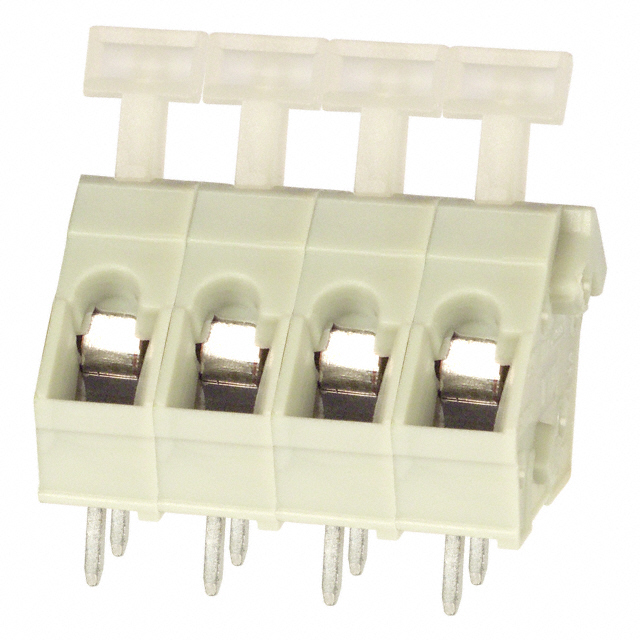

On Shore Technology Inc. ED3001/4-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	4	0.197 in	5 mm	16 A	Copper

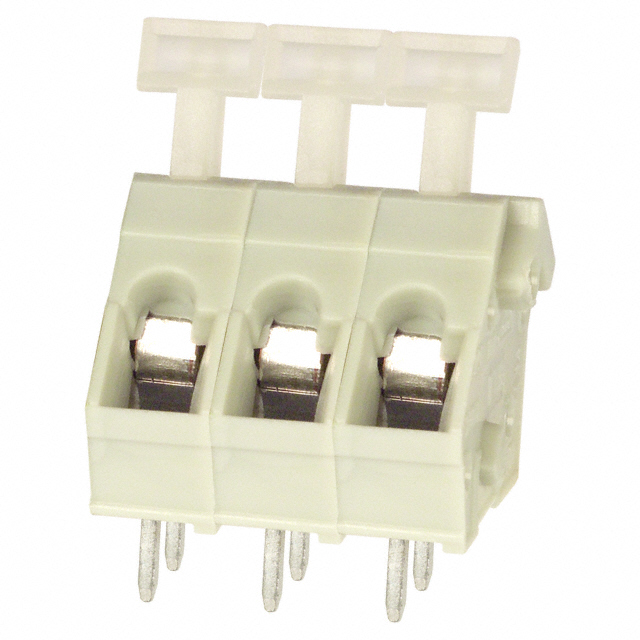

On Shore Technology Inc. ED3001/3-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	3	0.197 in	5 mm	16 A	Copper

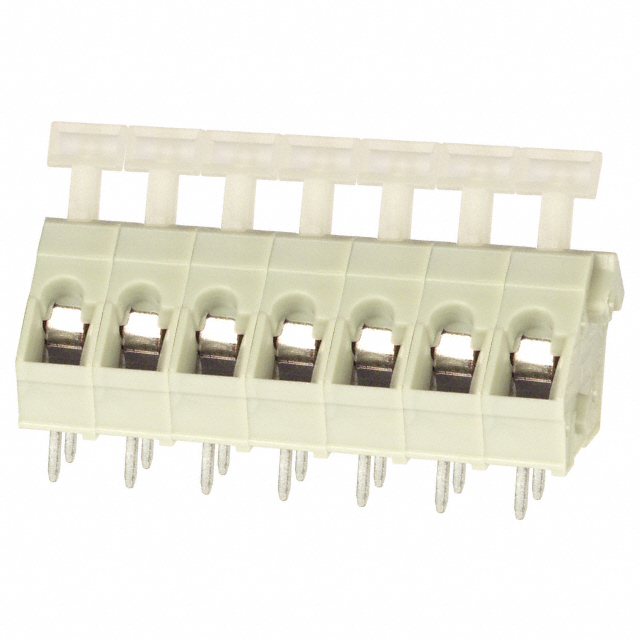

On Shore Technology Inc. ED3001/7-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC		0.197 in	5 mm	16 A	Copper	7

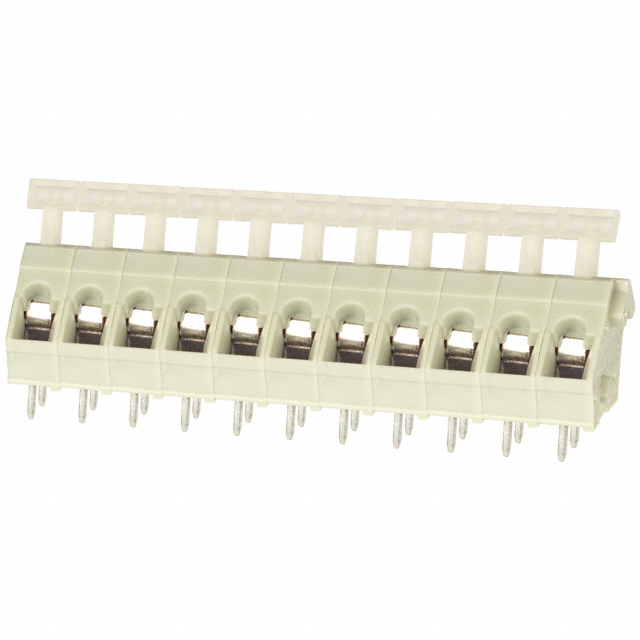

On Shore Technology Inc. ED3001/11-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	11	0.197 in	5 mm	16 A	Copper

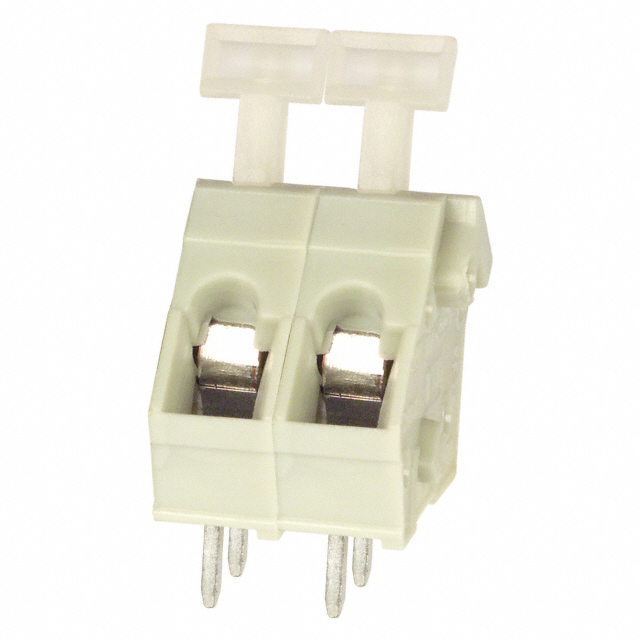

On Shore Technology Inc. ED3001/2-KD		Polyamide (PA) Nylon	-30 ░C	105 ░C	28 AWG	14 AWG	Gray Slate	135 °	45 °	1	Interlocking (Side) Lever Actuated	Leg Spring Push-In Spring	Through Hole	300 VDC	2	0.197 in	5 mm	16 A	Copper
