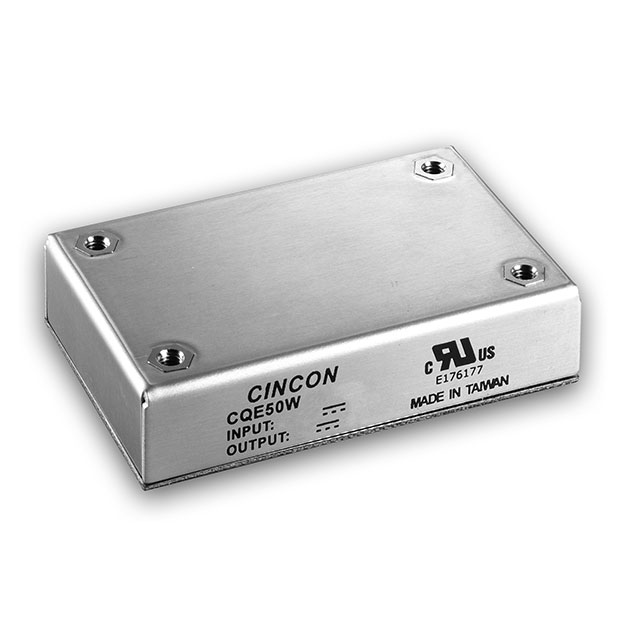

CQE50W Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 48V 50W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Output 1	Control Features	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Standard Number	Features	Type	Efficiency	Approval Agency	Mounting Type	Current - Output (Max) [Max]	Package / Case	Supplier Device Package	Voltage - Isolation	Voltage - Input (Min) [Min]	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]
Cincon Electronics Co. LTD CQE50W-48S48	105 C	-40 °C	50 W	75 V	48 V	Active High Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	89 %	CE	Through Hole	1.04 A	Module	Module	1.5 kV	18 V	1
Cincon Electronics Co. LTD CQE50W-24S15	105 C	-40 °C	50 W	36 V	15 V	Active High Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	91.5 %	CE	Through Hole	3.33 A	Module	Module	1.5 kV	9 V	1
Cincon Electronics Co. LTD CQE50W-24S48	105 C	-40 °C	50 W	36 V	48 V	Active High Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	88.5 %	CE	Through Hole	1.04 A	Module	Module	1.5 kV	9 V	1
Cincon Electronics Co. LTD CQE50W-24S12N	105 C	-40 °C	50 W	36 V	12 V	Active Low Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	91.5 %	CE	Through Hole	4.16 A	Module		1.5 kV	9 V	1

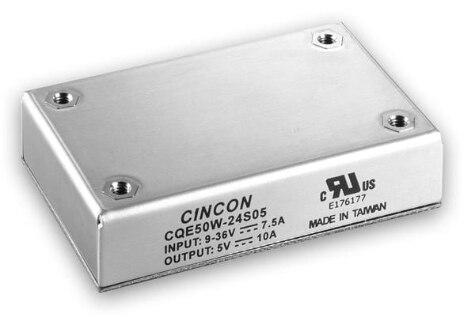

Cincon Electronics Co. LTD CQE50W-48S12N	105 C	-40 °C	50 W	75 V	12 V	Active Low Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	92 %	CE	Through Hole	4.16 A	Module		1.5 kV	18 V	1
Cincon Electronics Co. LTD CQE50W-48S12	105 C	-40 °C	50 W	75 V	12 V	Active High Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	92 %	CE	Through Hole	4.16 A	Module	Module	1.5 kV	18 V	1
Cincon Electronics Co. LTD CQE50W-24S12	105 C	-40 °C	50 W	36 V	12 V	Active High Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	91.5 %	CE	Through Hole	4.16 A	Module	Module	1.5 kV	9 V	1
Cincon Electronics Co. LTD CQE50W-24S12-CM	100 °C	-40 °C	50 W	36 V	12 V		ITE (Commercial)	96 mm	1.57 "	0.98 in	3.78 in			60950-1		Enclosed		CE cURus	Chassis Mount	4.16 A				9 V	1	40 mm	25 mm
Cincon Electronics Co. LTD CQE50W-48S05N	105 C	-40 °C	50 W	75 V	5 V	Active Low Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	92 %	CE	Through Hole	10 A	Module		1.5 kV	18 V	1
Cincon Electronics Co. LTD CQE50W-24S3V3	105 C	-40 °C	33 W	36 V	3.3 V	Active High Enable	ITE (Commercial)	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	60950-1	OCP OTP OVP Remote On/Off SCP UVLO	Isolated Module	90.5 %	CE	Through Hole	10 A	Module	Module	1.5 kV	9 V	1
