10090097 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

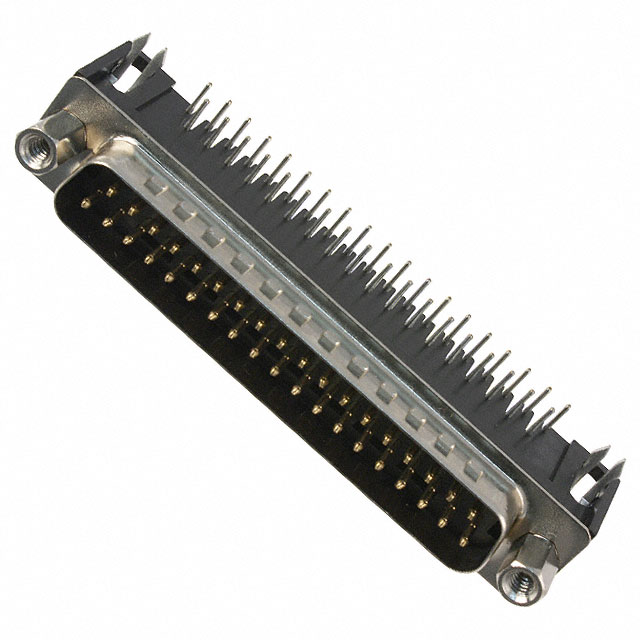

CONN D-SUB PLUG 37POS R/A SLDR
| Part | Dielectric Material | Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Flange Feature | Features | Connector Type | Shell Material, Finish | Mounting Type | Number of Positions | Contact Type | Backset Spacing | Backset Spacing | Termination | Contact Finish | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout | Number of Rows [custom] | Material Flammability Rating | Connector Style | Contact Finish Thickness | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Copper Alloy | Board Side (4-40) | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Steel Tin-Nickel Plated | Board Edge Right Angle Through Hole | 37 | Signal | 8.08 mm | 0.318 " | Solder | Gold | 5 A | 4 | DC C | 2 | UL94 V-0 | D-Sub | Flash | |||
 Amphenol ICC (FCI) | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Copper Alloy | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Steel Tin-Nickel Plated | Board Edge Right Angle Through Hole | 25 | Signal | 8.08 mm | 0.318 " | Solder | Gold | 5 A | B DB | 2 | UL94 V-0 | D-Sub | Flash | 3 | |||
 Amphenol ICC (FCI) | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Copper Alloy | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Steel Tin-Nickel Plated | Board Edge Right Angle Through Hole | 37 | Signal | 8.08 mm | 0.318 " | Solder | Gold | 5 A | 4 | DC C | 2 | UL94 V-0 | D-Sub | Flash | |||
 Amphenol ICC (FCI) | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Copper Alloy | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Steel Tin-Nickel Plated | Board Edge Right Angle Through Hole | 9 | Signal | 8.08 mm | 0.318 " | Solder | Gold | 5 A | 2 | UL94 V-0 | D-Sub | Flash | 1 | DE E | |||
Amphenol ICC (FCI) | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Copper Alloy | Board Side (4-40) | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Steel Tin-Nickel Plated | Board Edge Right Angle Through Hole | 15 | Signal | 8.08 mm | 0.318 " | Solder | Gold | 5 A | 2 | 2 | UL94 V-0 | D-Sub | Flash | ||||
 Amphenol ICC (FCI) | Thermoplastic Glass Filled | Black | 250 V | -55 C | 105 ░C | Copper Alloy | 4-40 Mating Side Female Screwlock | Board Lock Grounding Indents Mounting Brackets | Plug Male Pins | Steel Tin-Nickel Plated | Board Edge Right Angle Through Hole | 15 | Signal | 8.08 mm | 0.318 " | Solder | Gold | 5 A | 2 | 2 | UL94 V-0 | D-Sub | Flash |
