Ps0 Series Series

Miniature Pushbutton Switches

Catalog

Miniature Pushbutton Switches

Part	Electrical Life	Actuator Marking	Type	Voltage Rating - DC	Mounting Type	Actuator Type	Switch Function	Current Rating (Amps)	Termination Style	Circuit	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Mechanical Life
LITTELFUSE PS-2214-L NS PA	10000 Cycles	No Marking	Standard	30 V	Through Hole	Button Square	On-On	100 mA	PC Pin	DPDT	Natural
LITTELFUSE PS-12G01		No Marking	Standard	14 V	Panel Mount Rear	Button Round	On-On	1 A	Socketable	SPDT	Natural	-20 ░C	70 °C

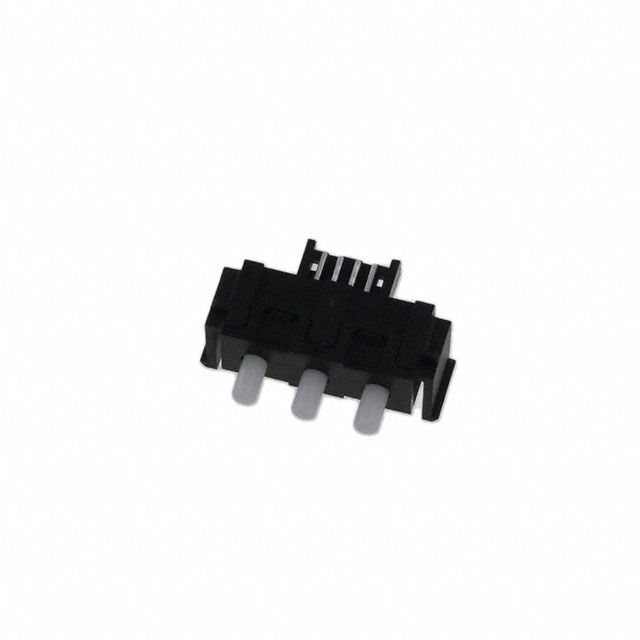

LITTELFUSE PS-32C02-F NS	100000 Cycles	No Marking	Standard	5 V	Panel Mount Snap-In	Plunger Round	Off-Mom	10 mA	PC Pin	SPST-NO x 3				100000 Cycles
LITTELFUSE PS-12G03		No Marking	Standard	14.5 V	Panel Mount Rear	Button Round	On-On	2.2 A	Socketable	SPDT	Black	-40 C	85 °C
LITTELFUSE PS-42C02-F NS		No Marking	Standard	5 V	Panel Mount Snap-In	Plunger Round	Off-Mom	10 mA	PC Pin	SPST-NO x 4

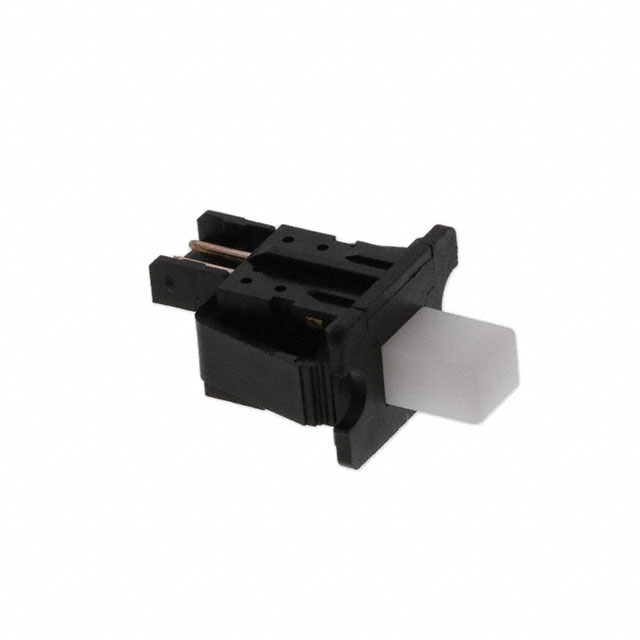

LITTELFUSE PS-12C02-F NS	100000 Cycles	No Marking	Standard	5 V	Panel Mount Snap-In	Button Rectangular	Off-Mom	10 mA	PC Pin	SPST-NO		-40 C	85 °C	100000 Cycles

Catalog

Miniature Pushbutton Switches

Description

PS series Miniature Pushbutton Switches from C&K are integrated into innovative audio & visual equipment, telecommunications, industrial and automotive products by some of the world’s leading designers. The PS series are miniature switches available in momentary or latching options, as well as a broad range of style choices.
