LUG TERMINAL, LCD SERIES, CRIMP, 10 AWG, COMPRESSION LUG, M6

Part	Diameter - Ring ID	Diameter - Ring ID	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Material	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Contact Finish	Insulation	Tab Thickness	Tab Thickness	Mounting Type	Terminal Type	Terminal Style	Width - Outer Edges	Width - Outer Edges	Termination	Stud/Tab Size	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]
Panduit Corp LCD10-14A-L	0.27 in	6.86 mm	3.3 mm	0.13 "	Copper	5.59 mm	0.22 in	Electro-Tin	Non-Insulated	1.27 mm	0.05 "	Free Hanging (In-Line)	Lug Grounding	Two Stud Holes	10.67 mm	0.42 in	Barrel Crimp	0.25 Stud	10 AWG	45.21 mm	1.78 in
Panduit Corp LCD10-14B-L	0.27 in	6.86 mm	3.3 mm	0.13 "	Copper	5.59 mm	0.22 in	Electro-Tin	Non-Insulated	1.27 mm	0.05 "	Free Hanging (In-Line)	Rectangular Tongue	Two Stud Holes	10.67 mm	0.42 in	Barrel Crimp	0.25 Stud	10 AWG	48.51 mm	1.91 in
Panduit Corp LCD10-38D-L			3.3 mm	0.13 "	Copper	5.59 mm	0.22 in	Electro-Tin	Non-Insulated	1.02 mm	0.04 "	Free Hanging (In-Line)	Rectangular Tongue	Two Stud Holes	14.22 mm	0.56 in	Barrel Crimp	0.375 Stud	10 AWG	60.45 mm	2.38 in	10.41 mm	0.41 "
Panduit Corp LCD10-38DF-L			3.3 mm	0.13 "	Copper	5.59 mm	0.22 in	Electro-Tin	Non-Insulated	1.02 mm	0.04 "	Free Hanging (In-Line) Right Angle	Rectangular Tongue	Two Stud Holes	14.22 mm	0.56 in	Barrel Crimp	0.375 Stud	10 AWG			10.41 mm	0.41 "
Panduit Corp LCD10-38DH-L			3.3 mm	0.13 "	Copper	5.59 mm	0.22 in	Electro-Tin	Non-Insulated	1.02 mm	0.04 "	Free Hanging (In-Line)	Rectangular Tongue	Two Stud Holes	14.22 mm	0.56 in	Barrel Crimp	0.375 Stud	10 AWG			10.41 mm	0.41 "

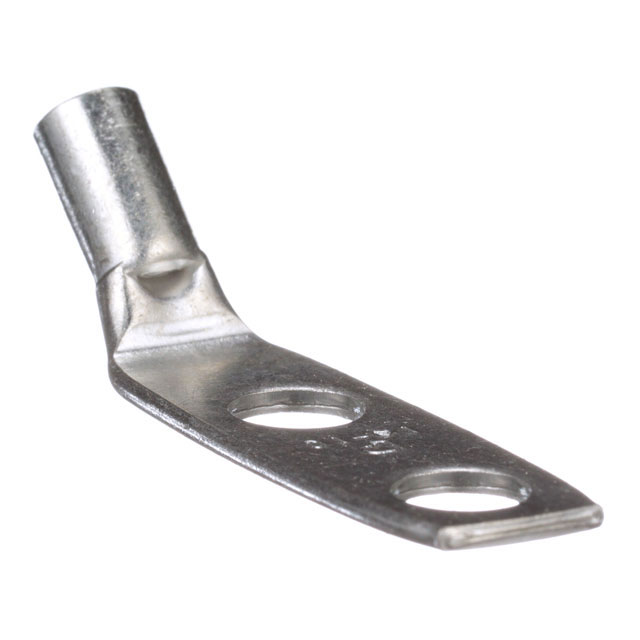

Panduit Corp LCD10-14AH-L	0.27 in	6.86 mm	3.3 mm	0.13 "	Copper	5.59 mm	0.22 in	Electro-Tin	Non-Insulated	1.27 mm	0.05 "	Free Hanging (In-Line)	Rectangular Tongue	Two Stud Holes	10.67 mm	0.42 in	Barrel Crimp	0.25 Stud	10 AWG
