A-HDS 26 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN D-SUB HD PLUG 26P R/A SLDR
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Features | Termination | Backset Spacing | Backset Spacing | Contact Finish | Number of Positions | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Finish Thickness | Contact Type | Current Rating (Amps) | Mounting Type | Connector Type | Flange Feature | Material Flammability Rating | Number of Rows [custom] | Wire Gauge [Min] | Wire Gauge [Max] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

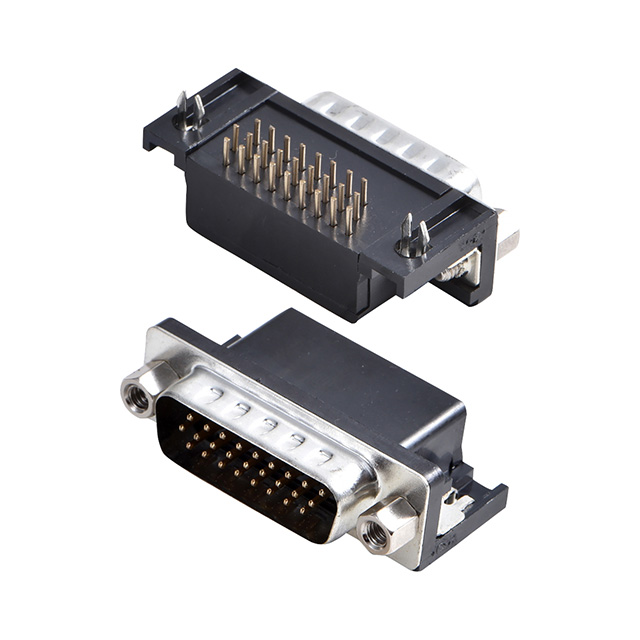

 Assmann WSW Components | Copper Alloy | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Board Lock Grounding Indents | Solder | 8.89 mm | 0.35 in | Gold | 26 | D-Sub High Density | 2 | DA A | Flash | Signal | 3 A | Panel Mount Right Angle Through Hole | Plug Male Pins | 4-40 Mating Side Female Screwlock | UL94 V-0 | 3 | |||

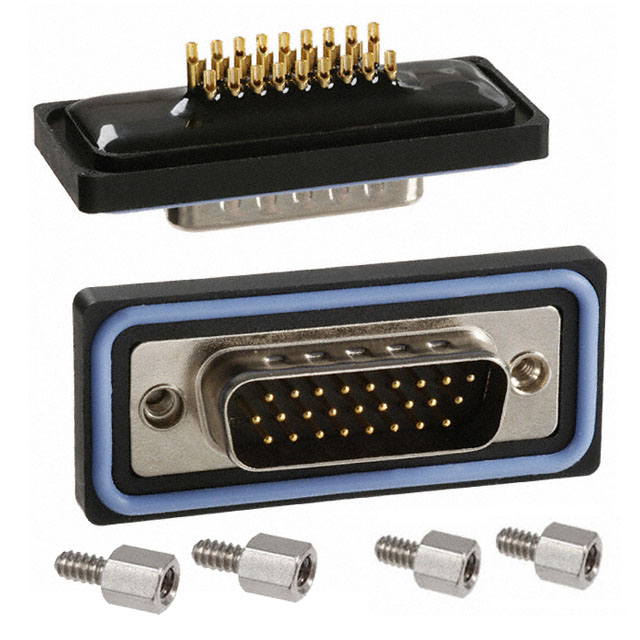

 Assmann WSW Components | Copper Alloy | Black | Glass Filled Nylon Polyamide (PA) | Grounding Indents | Gold | 26 | D-Sub High Density | 2 | DA A | Signal | Panel Mount | Plug Male Pins | Female Screwlock Mating Side | 3 | 24 AWG | 28 AWG | IP67 - Dust Tight Waterproof |
