68032 Series

Catalog

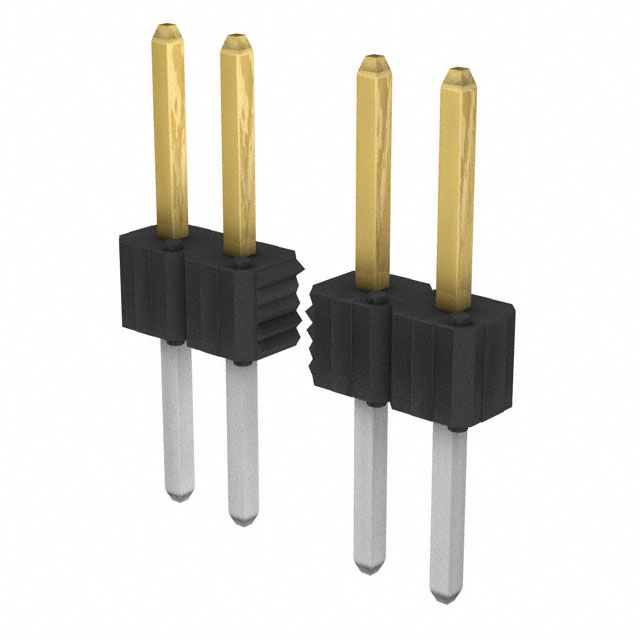

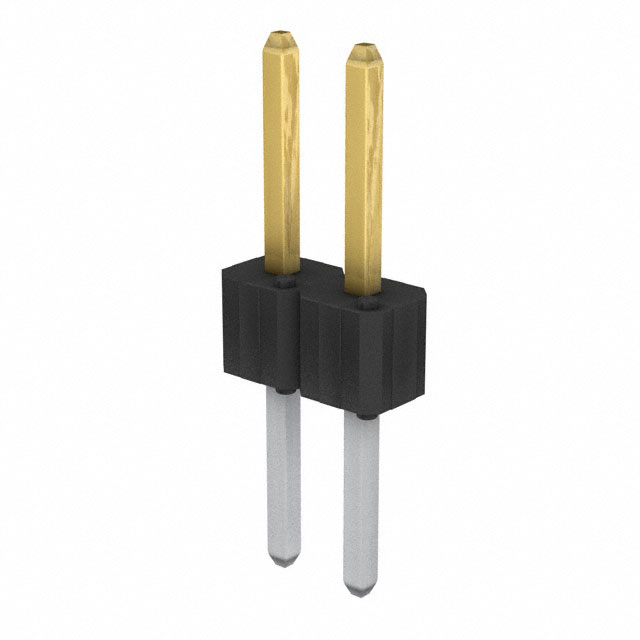

CONN HEADER VERT 2POS 2.54MM

Part	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Termination	Contact Type	Contact Shape	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Shrouding	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Fastening Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Mounting Type	Contact Finish - Mating	Contact Material
Amphenol ICC (FCI) 68032-102HLF	UL94 V-0	5.4 mm	0.213 in	All	Solder	Male Pin	Square	1	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.543 in	13.8 mm	0.1 in	2.54 mm	Push-Pull	Header	30 Áin	0.76 Ám	2	Through Hole	Gold or Gold GXT™	Phosphor Bronze
Amphenol ICC (FCI) 68032-126HLF	UL94 V-0	5.4 mm	0.213 in	All	Solder	Male Pin	Square	1	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.543 in	13.8 mm	0.1 in	2.54 mm	Push-Pull	Header	30 Áin	0.76 Ám	26	Through Hole	Gold or Gold GXT™	Phosphor Bronze
Amphenol ICC (FCI) 68032-236HLF	UL94 V-0	5.4 mm	0.213 in	All	Solder	Male Pin	Square	1	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.543 in	13.8 mm	0.1 in	2.54 mm	Push-Pull	Header	15 µin	0.38 µm	36	Through Hole	Gold or Gold GXT™	Phosphor Bronze
Amphenol ICC (FCI) 68032-436	UL94 V-0	5.4 mm	0.213 in	All	Solder	Male Pin	Square	1	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.543 in	13.8 mm	0.1 in	2.54 mm	Push-Pull	Header	100 çin	2.54 çm	36	Through Hole		Phosphor Bronze
Amphenol ICC (FCI) 68032-232HLF	UL94 V-0	5.4 mm	0.213 in	All	Solder	Male Pin	Square	1	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.543 in	13.8 mm	0.1 in	2.54 mm	Push-Pull	Header	15 µin	0.38 µm		Through Hole	Gold or Gold GXT™	Phosphor Bronze
Amphenol ICC (FCI) 68032-226HLF	UL94 V-0	5.4 mm	0.213 in	All	Solder	Male Pin	Square	1	Black	0.1 in	2.54 mm	0.23 in	5.84 mm	Unshrouded	0.543 in	13.8 mm	0.1 in	2.54 mm	Push-Pull	Header	15 µin	0.38 µm	26	Through Hole	Gold or Gold GXT™	Phosphor Bronze
