32S153 Series
Manufacturer: Rosenberger
Beta
⌘K
ADAPT SMA PLUG - N JACK
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Body Finish | Mating Cycles | Center Contact Material | Adapter Type | Impedance | Conversion Type | Center Contact Plating | Frequency - Max [Max] | Convert To (Adapter End) | Mounting Type | Style | Convert From (Adapter End) | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

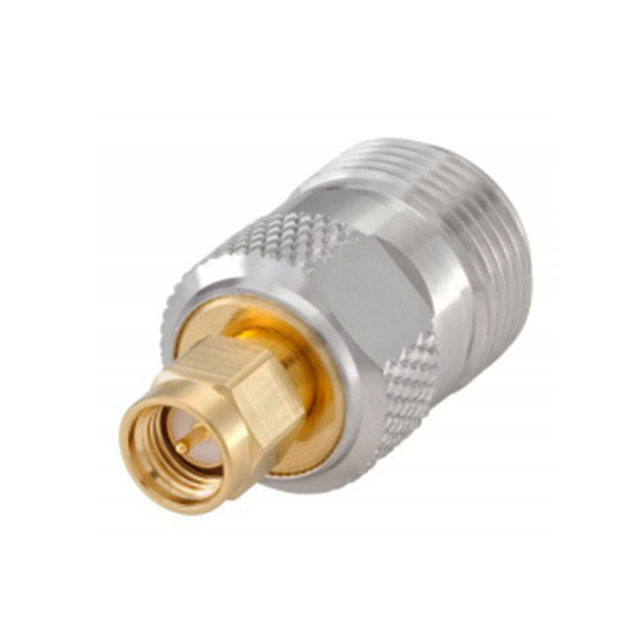

 Rosenberger | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Beryllium Copper Brass | Gold Nickel | 500 | Beryllium Copper | Plug to Jack | 50 Ohms | Between Series | Gold | 11 GHz | N Jack Female Socket | Free Hanging (In-Line) | Straight | Male Pin SMA Plug | |

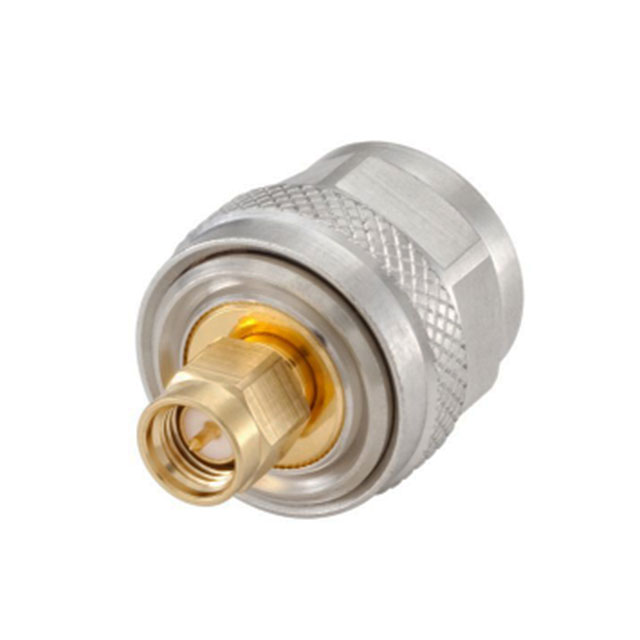

 Rosenberger | Polytetrafluoroethylene (PTFE) | 155 C | -55 C | Beryllium Copper Brass | Gold Nickel | 500 | Brass | Plug to Plug | 50 Ohms | Between Series | Gold | 12 GHz | N Plug Male Pin | Free Hanging (In-Line) | Straight | Male Pin SMA Plug | Male to Male |
