1363301 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

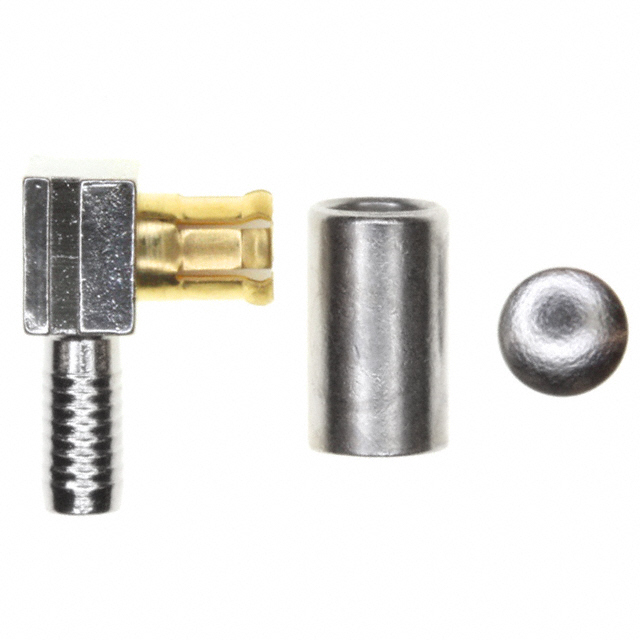

CONN MCX PLUG R/A 50 OHM SOLDER
| Part | Center Contact Plating | Insertion Loss | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Finish | Voltage Rating | Includes | Center Contact Material | Cable Group | Mounting Type | Number of Ports | Connector Type | Impedance | Frequency - Max [Max] | Fastening Type | Contact Termination | Housing Color | Connector Style | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | 0.1 dB | 500 | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Nickel | 335 V | 1 Connector 1 End Cap 1 Ferrule | Brass | RG-316 | Free Hanging (In-Line) Right Angle | 1 | Plug Male Pin | 50 Ohms | 6000 MHz | Snap-On | Solder | Silver | MCX | Crimp |
