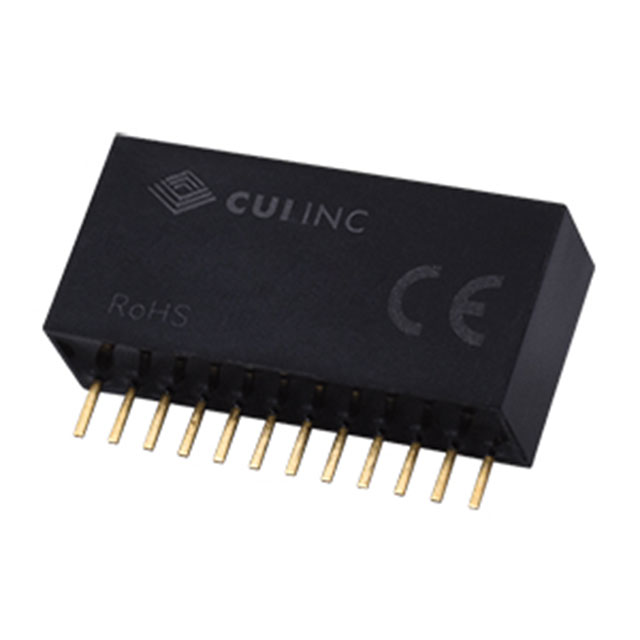

P783-Q24 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER 12V 36W
| Part | Voltage - Input (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Efficiency | Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Package / Case | Mounting Type | Approval Agency | Voltage - Output 1 | Voltage - Input (Min) [Min] | Current - Output (Max) [Max] | Applications | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 36 V | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 97 % | Non-Isolated PoL Module | -40 °C | 85 °C | 1 | 12-SIP Module | Through Hole | CE | 12 V | 16 V | 3 A | ITE (Commercial) | 36 W |
CUI Inc. | 36 V | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 93 % | Non-Isolated PoL Module | -40 °C | 85 °C | 1 | 12-SIP Module | Through Hole | CE | 5 V | 8 V | 3 A | ITE (Commercial) | 15 W |
CUI Inc. | 36 V | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 95 % | Non-Isolated PoL Module | -40 °C | 85 °C | 1 | 12-SIP Module | Through Hole | CE | 9 V | 13 V | 3 A | ITE (Commercial) | 27 W |
CUI Inc. | 36 V | 0.49 " | 30.6 mm | 0.23 in | 5.8 mm | 1.2 in | 12.5 mm | 94 % | Non-Isolated PoL Module | -40 °C | 85 °C | 1 | 12-SIP Module | Through Hole | CE | 6.5 V | 10 VDC | 3 A | ITE (Commercial) | 20 W |
