202D121 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

FLEX POLY MOLDED PART

Part	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Total Length Recovered	Total Length Recovered	Material	Small Recovered Length	Small Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Color	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Large Recovered Length [custom]	Large Recovered Length [custom]	Type	Shell Size - Insert	Large Recovered Length	Large Recovered Length	Small Recovered Length [custom]
TE Connectivity Aerospace, Defense and Marine 202D121-4-07-0	23.29 mm	0.917 in	1.03 in	26.16 mm	Polyolefin (PO) Flexible	0.4 in	10.16 mm	0.92 in	23.37 mm	Black	5.59 mm	0.22 "	10.41 mm	0.41 in	0.36 in	9.14 mm	Boot
TE Connectivity Aerospace, Defense and Marine 202D121-4-60/42-0-CS5503	23.37 mm	0.92 in	1.5 in	38.1 mm	Polyolefin (PO) Flexible	0.4 in	10.16 mm	0.92 in	23.37 mm	Black	5.59 mm	0.22 "	10.41 mm	0.41 in			Boot	21	21.08 mm	0.83 in
TE Connectivity Aerospace, Defense and Marine 202D121-3-00-0
TE Connectivity Aerospace, Defense and Marine 202D121-3-37-0	23.29 mm	0.917 in	1.5 in	38.1 mm	Polyolefin (PO) Semi-Rigid		10.21 mm	0.92 in	23.37 mm	Black	5.59 mm	0.22 "	10.41 mm	0.41 in			Boot		21.11 mm	0.831 in	0.402 in

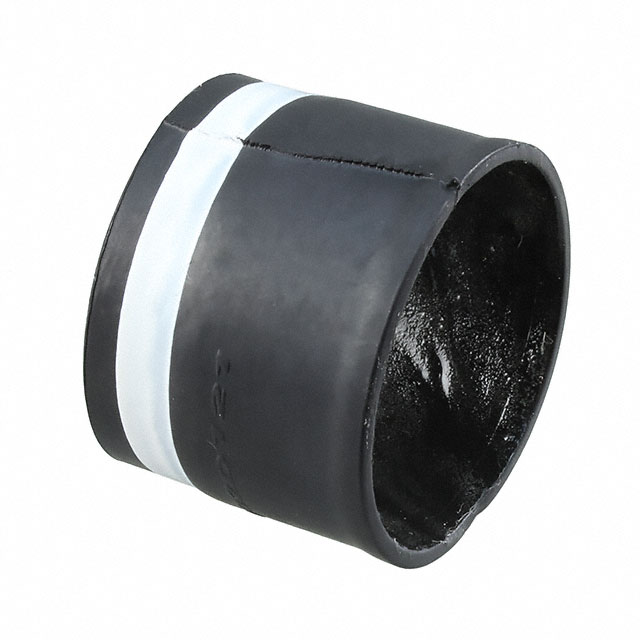

TE Connectivity Aerospace, Defense and Marine 202D121-3-60/42-0	23.29 mm	0.917 in	1.5 in	38.1 mm	Polyolefin (PO) Semi-Rigid			0.917 in	23.29 mm	Black	5.59 mm	0.22 "	10.49 mm	0.413 in			Boot	21	21.11 mm	0.831 in
TE Connectivity Aerospace, Defense and Marine 202D121-100/86-0	12.45 mm	0.49 in	1.5 in	38.1 mm	Polyolefin (PO) Semi-Flexible Halogen Free			0.92 in	23.37 mm	Black	5.59 mm	0.22 "	10.41 mm	0.41 in			Boot	21	21.08 mm	0.83 in
TE Connectivity Aerospace, Defense and Marine 202D121-100/180-0	12.45 mm	0.49 in	1.5 in	38.1 mm	Polyolefin (PO) Semi-Flexible Halogen Free			0.92 in	23.37 mm	Black	5.59 mm	0.22 "	10.41 mm	0.41 in			Boot	21	21.08 mm	0.83 in
TE Connectivity Aerospace, Defense and Marine 202D121-4/86-0	23.29 mm	0.917 in	1.5 in	38.1 mm	Polyolefin (PO) Flexible			0.917 in	23.29 mm	Black	5.59 mm	0.22 "	10.49 mm	0.413 in			Boot	21	21.11 mm	0.831 in
TE Connectivity Aerospace, Defense and Marine 202D121-3/42-0	23.29 mm	0.917 in	1.5 in	38.1 mm	Polyolefin (PO) Semi-Rigid			0.917 in	23.29 mm	Black	5.59 mm	0.22 "	10.49 mm	0.413 in			Boot	21	21.11 mm	0.831 in
TE Connectivity Aerospace, Defense and Marine 202D121-4-60-0	23.29 mm	0.917 in	1.5 in	38.1 mm	Polyolefin (PO) Flexible			0.917 in	23.29 mm	Black	5.59 mm	0.22 "	10.49 mm	0.413 in			Boot	21	21.11 mm	0.831 in
