L77TSAH15 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

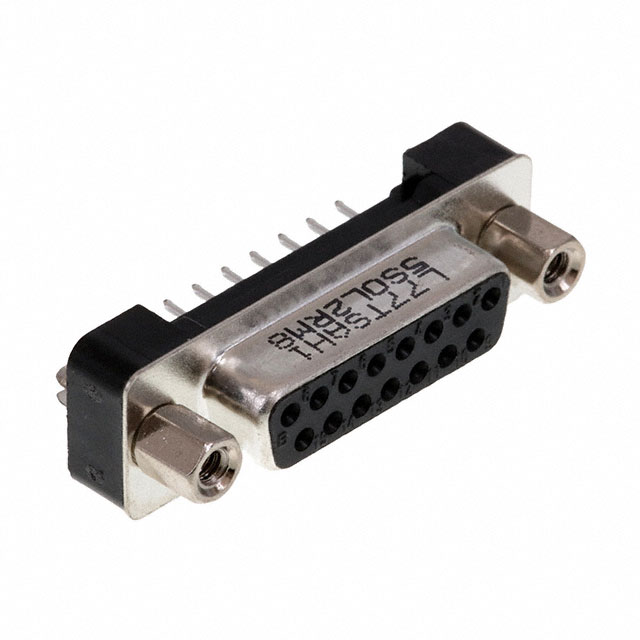

CONN D-SUB RCPT 15POS VERT SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Contact Form | Shell Size, Connector Layout | Features | Contact Finish | Contact Finish Thickness | Connector Type | Mounting Type | Number of Positions | Current Rating (Amps) | Termination | Flange Feature | Contact Type | Material Flammability Rating | Connector Style | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Copper Alloy | -55 C | 125 °C | 600 V | Thermoplastic Glass Filled | Stamped | 2 | Board Lock | Gold | Flash | Receptacle Female Sockets | Through Hole | 15 | 5 A | Solder | Board Side (4-40) | Signal | UL94 V-0 | D-Sub | 2 |
 Amphenol ICC (Commercial Products) | Copper Alloy | -55 C | 125 °C | 600 V | Thermoplastic Glass Filled | Stamped | 2 | Board Lock | Gold | Flash | Receptacle Female Sockets | Through Hole | 15 | 5 A | Solder | Board Side (4-40) | Signal | UL94 V-0 | D-Sub | 2 |
 Amphenol ICC (Commercial Products) | Copper Alloy | -55 C | 125 °C | 600 V | Thermoplastic Glass Filled | Stamped | 2 | Gold | Flash | Receptacle Female Sockets | Through Hole | 15 | 5 A | Solder | Board Side (4-40) | Signal | UL94 V-0 | D-Sub | 2 | |
 Amphenol ICC (Commercial Products) | Copper Alloy | -55 C | 125 °C | 600 V | Thermoplastic Glass Filled | Stamped | 2 | Gold | Flash | Receptacle Female Sockets | Through Hole | 15 | 5 A | Solder | Board Side (4-40) | Signal | UL94 V-0 | D-Sub | 2 | |
 Amphenol ICC (Commercial Products) | Copper Alloy | -55 C | 125 °C | 600 V | Thermoplastic Glass Filled | Stamped | 2 | Board Lock | Gold | Flash | Receptacle Female Sockets | Through Hole | 15 | 5 A | Solder | 4-40 Mating Side Female Screwlock | Signal | UL94 V-0 | D-Sub | 2 |
 Amphenol ICC (Commercial Products) | Copper Alloy | -55 C | 125 °C | 600 V | Thermoplastic Glass Filled | Stamped | 2 | Board Lock | Gold | Flash | Receptacle Female Sockets | Through Hole | 15 | 5 A | Solder | 4-40 Mating Side Female Screwlock | Signal | UL94 V-0 | D-Sub | 2 |
