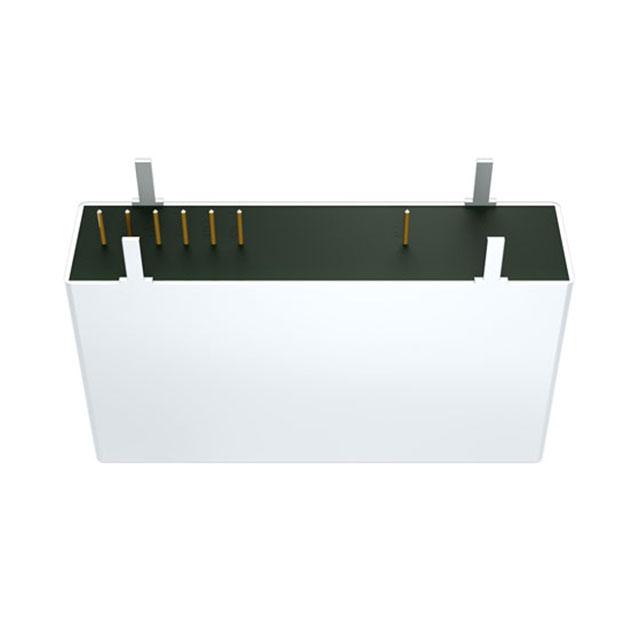

1.25V24 Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
DC DC CONVERTER 1250V 1W
| Part | Approval Agency | Current - Output (Max) [Max] | Applications | Voltage - Input (Min) [Min] | Number of Outputs | Features | Control Features | Package / Case | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ULTRAVOLT / Advanced Energy | CE cUL cURus UL | 800 µA | ITE (Commercial) | 22 V | 1 | Adjustable Output | Active High Enable | 9-SIP Module | 1250 V | 12 mm | 25 mm | 0.98 in | 1.81 " | 0.47 " | 46 mm | High Voltage - Non-Isolated Module | Through Hole | 65 °C | -10 °C | 26 V |
ULTRAVOLT / Advanced Energy | CE cUL cURus UL | 800 µA | ITE (Commercial) | 22 V | 1 | Adjustable Output | Active Low Enable | 9-SIP Module | 1250 V | 12 mm | 25 mm | 0.98 in | 1.81 " | 0.47 " | 46 mm | High Voltage - Non-Isolated Module | Through Hole | 65 °C | -10 °C | 26 V |
