LHS-06 Series
Manufacturer: Adam Tech
Beta
⌘K

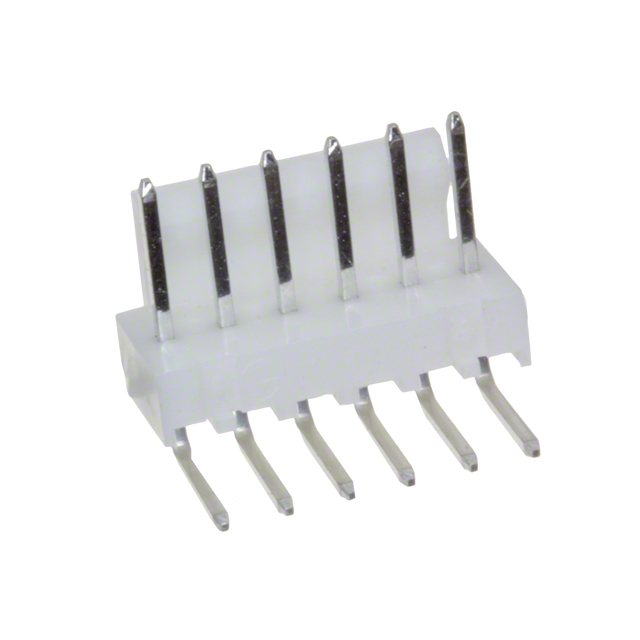

CONN HEADER R/A 6POS 2.54MM
| Part | Number of Positions Loaded | Insulation Color | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Number of Rows | Number of Positions | Connector Type | Shrouding | Fastening Type | Style | Contact Finish - Post | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Mating | Contact Length - Mating | Insulation Material | Termination | Material Flammability Rating | Contact Shape | Contact Length - Post | Contact Length - Post | Mounting Type | Voltage Rating | Contact Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | All | White | 0.1 " | 2.54 mm | 0.252 " | 6.4 mm | 1 | 6 | Header | Shrouded - 1 Wall | Friction Lock | Board to Cable/Wire | Tin | Male Pin | 85 °C | -25 °C | 6.7 mm | 0.264 in | Nylon 6/6 Polyamide (PA66) | Solder | UL94 V-0 | Square | 0.13 " | 3.3 mm | Right Angle Through Hole | 250 VAC | Brass | 3 A |
