MMI-P1FG Series
Manufacturer: Adam Tech
Beta
⌘K

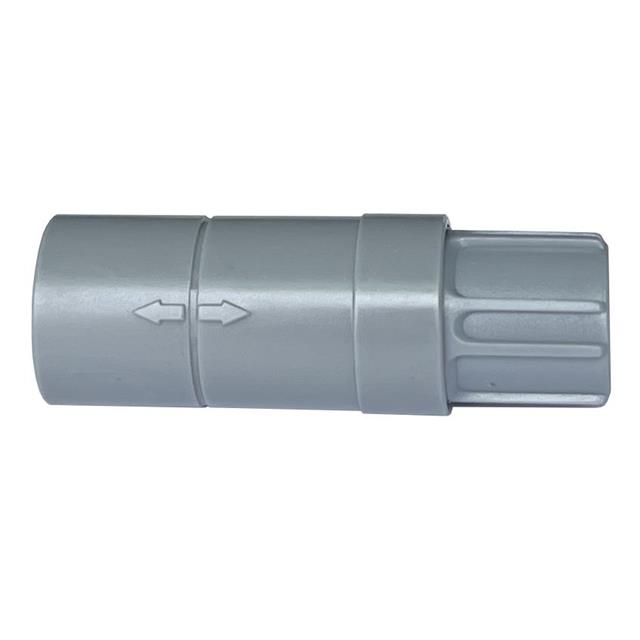

CONN PLUG FMALE 4P GOLD SLDR CUP
| Part | Ingress Protection | Orientation [custom] | Mounting Type | Shell Material | Current Rating (Amps) | Features | Voltage Rating | Contact Material | Insert Material | Primary Material | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Connector Type | Number of Positions | Contact Finish - Mating | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 10 A | Backshell | 250 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 4 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 8 A | Backshell | 200 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 6 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 7 A | Backshell | 200 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 7 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 6 A | Backshell | 200 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 8 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 9 A | Backshell | 250 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 5 | Gold | Gray |
 Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 9 A | Backshell Strain Relief | 250 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 5 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 8 A | Backshell Strain Relief | 200 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 6 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 4 A | Backshell | 200 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 10 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 10 A | Backshell Strain Relief | 250 V | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | 4 | Gold | Gray |
Adam Tech | IP50 - Dust Protected | G | Free Hanging (In-Line) | Polycarbonate (PC) | 12 Amps | Backshell | 300 VDC | Brass | Polyphenylene Sulfide (PPS) | Plastic | Push-Pull | -55 C | 118 °C | Unshielded | Plug Female Sockets | Gold | Gray |
