H2475 Series
Manufacturer: Harwin Inc.
Beta
⌘K

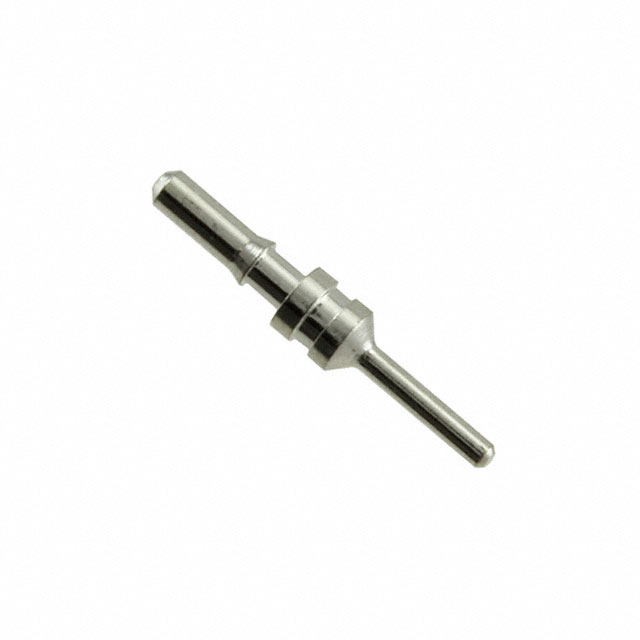

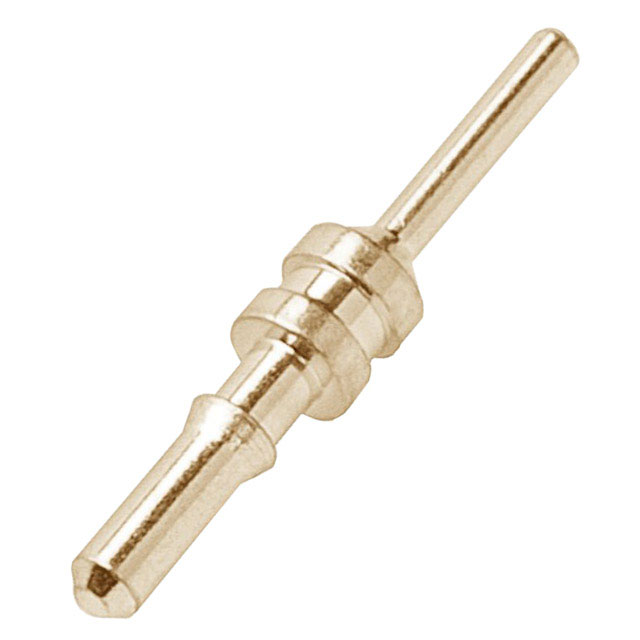

MALE VERTICAL THROUGHBOARD TERMINAL PIN ROHS COMPLIANT: YES
| Part | Insulation | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter | Flange Diameter | Termination | Terminal Style | Mounting Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Board Thickness | Board Thickness | Length - Overall [x] | Length - Overall [x] | Contact Finish | Terminal Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Non-Insulated | 0.03 in | 0.76 mm | 0.05 in | 1.27 mm | Barbed Swage | Double End | Through Hole | 0.02 in | 0.51 mm | 0.118 " | 3 mm | 0.063 in | 1.6 mm | 0.287 in | 7.29 mm | Gold | PC Pin | Brass |
 Harwin Inc. | Non-Insulated | 0.03 in | 0.76 mm | 0.05 in | 1.27 mm | Barbed Swage | Double End | Through Hole | 0.02 in | 0.51 mm | 0.118 " | 3 mm | 0.063 in | 1.6 mm | 0.287 in | 7.29 mm | Tin | PC Pin | Brass |
