SMC Series

Catalog

PLUGGABLE TERMINAL BLOCKS 9 POS 3.81MM PITCH THROUGH HOLE HEADER

Part	Contact Tail Length [x]	Contact Tail Length [x]	Housing Material	Insulation Height	Insulation Height	Material Flammability Rating	Number of Levels	Current - IEC	Mounting Type	Voltage - UL	Features	Pitch	Pitch	Positions Per Level	Voltage - IEC	Color	Number of Positions	Termination Style	Contact Mating Finish	Type	Current - UL	Header Orientation
Phoenix Contact 1827499	3.4 mm	0.134 in	Polyamide (PA) Nylon	11 mm	0.433 "	UL94 V-0	1	8 A	Through Hole	300 V	Mating Flange	3.81 mm	0.15 in	9	320 V	Green	9	Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °

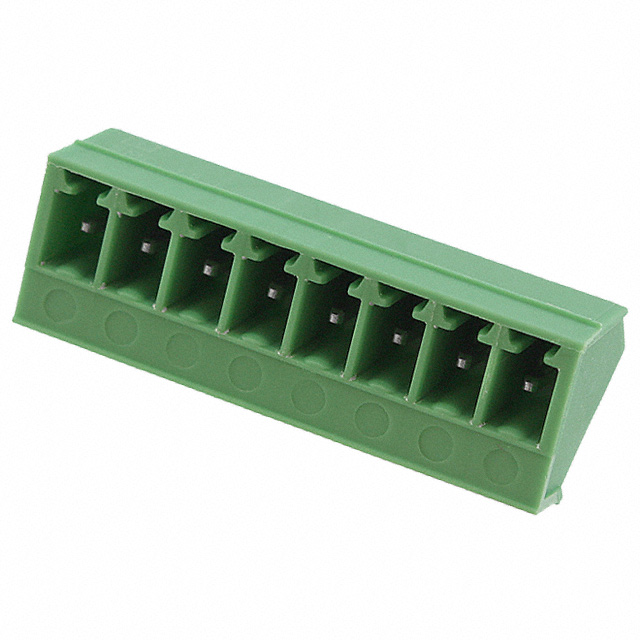

Phoenix Contact 1827334	3.4 mm	0.134 in	Polyamide (PA) Nylon	11 mm	0.433 "	UL94 V-0	1	8 A	Through Hole	300 V		3.81 mm	0.15 in	8	320 V	Green	8	Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °

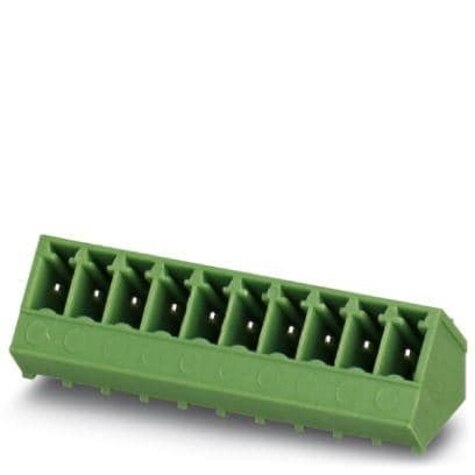

Phoenix Contact 1729289	3.4 mm	0.134 in		11 mm	0.433 "		1	8 A	Through Hole	300 V	Mating Flange	3.81 mm	0.15 in	3	160 V	Black		Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °
Phoenix Contact 1827525	3.4 mm	0.134 in	Polyamide (PA) Nylon	11 mm	0.433 "	UL94 V-0	1	8 A	Through Hole	300 V	Mating Flange	3.81 mm	0.15 in	12	320 V	Green	12	Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °

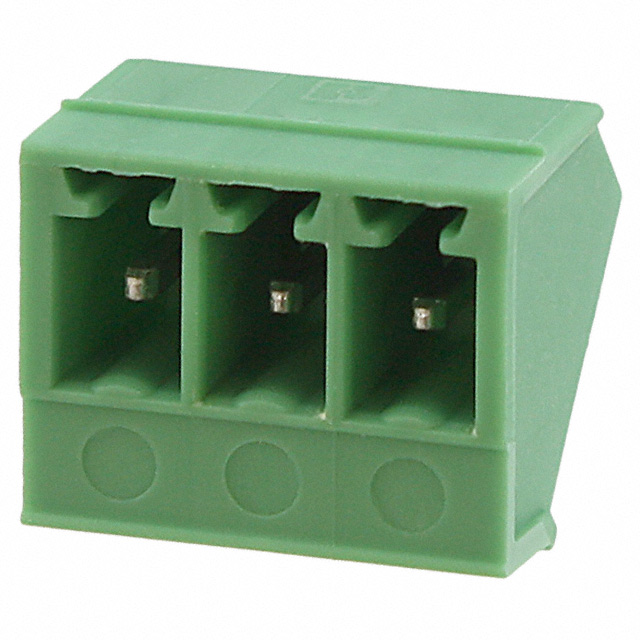

Phoenix Contact 1827282	3.4 mm	0.134 in	Polyamide (PA) Nylon	11 mm	0.433 "	UL94 V-0	1	8 A	Through Hole	300 V		3.81 mm	0.15 in	3	320 V	Green		Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °
Phoenix Contact 1827554	3.4 mm	0.134 in	Polyamide (PA) Nylon	11 mm	0.433 "	UL94 V-0	1	8 A	Through Hole	300 V	Mating Flange	3.81 mm	0.15 in	15	320 V	Green	15	Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °
Phoenix Contact 1827457	3.4 mm	0.134 in	Polyamide (PA) Nylon	11 mm	0.433 "	UL94 V-0	1	8 A	Through Hole	300 V	Mating Flange	3.81 mm	0.15 in	5	320 V	Green	5	Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °
Phoenix Contact 1827318							1	8 A	Through Hole	300 V		3.81 mm	0.15 in	6	320 V	Green	6	Solder	Tin	Header Male Pins Shrouded (4 Side)	8 A	45 °
