RAYCHEM FL2500 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

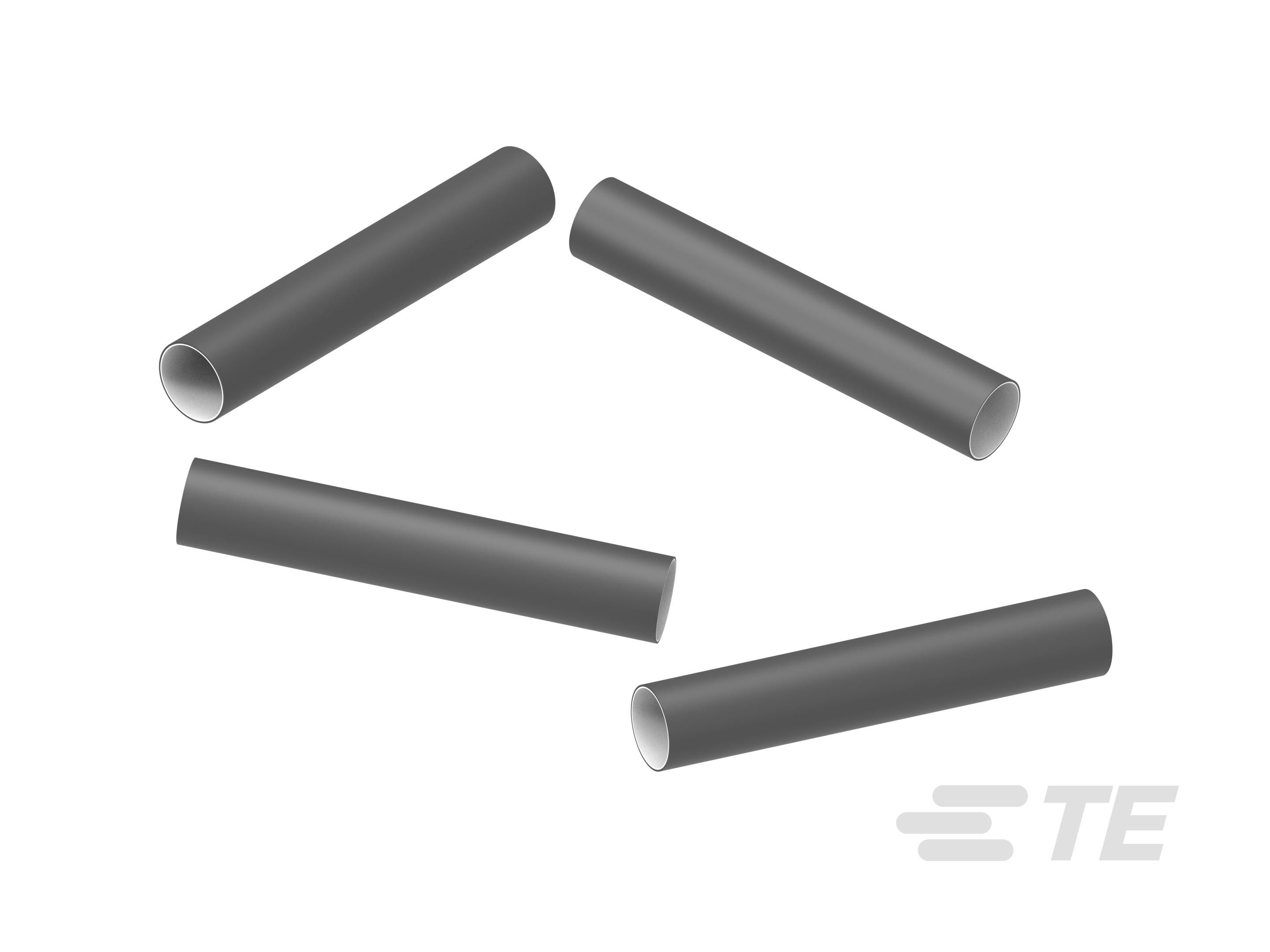

HEATSHRINK 0.7" X 0.196' BLACK

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material	Length	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Features	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrinkage Ratio	Type	Length [x]	Length [x]	Inner Diameter - Recovered	Length [x]
TE Connectivity AMP Connectors FL2500-NO.4-J2-0-60MM	0.7 in	17.78 mm	36 Months	0.175 in	4.45 mm	Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.196 ft	2.36 "	60 mm	2.54 mm	0.1 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid
TE Connectivity AMP Connectors FL2500-NO.4-J2-0-40MM	0.7 in	17.78 mm	36 Months	0.175 in	4.45 mm	Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.131 '	1.57 "	40 mm	2.54 mm	0.1 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid
TE Connectivity AMP Connectors FL2500-NO.4-J2-0-30MM	0.7 in	17.78 mm	36 Months	0.175 in	4.45 mm	Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.098 '	1.18 "	0.03 m	2.54 mm	0.1 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid
TE Connectivity AMP Connectors FL2500-NO.2-I9-0-STK	0.355 in	9.02 mm	36 Months	0.09 in		Black	-40 C	135 °C	Polyolefin (PO) Irradiated				1.52 mm	0.06 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid	4 ft	1.22 m	2.29 mm
TE Connectivity AMP Connectors FL2500-NO.2-I9-0-25MM	0.355 in	9.02 mm	36 Months	0.09 in		Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.082 '	0.98 "	25 mm	1.52 mm	0.06 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid			2.29 mm
TE Connectivity AMP Connectors FL2500-NO.1-I8-0-101MM	0.3 in	7.62 mm	36 Months	0.065 in		Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.331 '	3.98 in	101 mm	1.52 mm	0.06 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid			1.65 mm
TE Connectivity AMP Connectors FL2500-NO.3-J1-0-35MM	0.455 "	11.56 mm	36 Months	0.1 in	2.54 mm	Black	-40 C	135 °C	Polyolefin (PO) Irradiated				2.29 mm	0.09 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid	0.114 ft	35 mm		1.37 "
TE Connectivity AMP Connectors FL2500-NO.1-I8-0-30MM	0.3 in	7.62 mm	36 Months	0.065 in		Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.098 '	1.18 "	0.03 m	1.52 mm	0.06 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid			1.65 mm
TE Connectivity AMP Connectors FL2500-NO.4-J2-0-42MM	0.7 in	17.78 mm	36 Months	0.175 in	4.45 mm	Black	-40 C	135 °C	Polyolefin (PO) Irradiated				2.54 mm	0.1 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid
TE Connectivity AMP Connectors FL2500-NO.2-I9-0-101MM	0.355 in	9.02 mm	36 Months	0.09 in		Black	-40 C	135 °C	Polyolefin (PO) Irradiated	0.331 '	3.98 in	101 mm	1.52 mm	0.06 in	110 °C	Abrasion Resistant Adhesive Lined Flame Retardant	35 °C	32 °F	95 °F	4 to 1	Tubing Semi Rigid			2.29 mm
