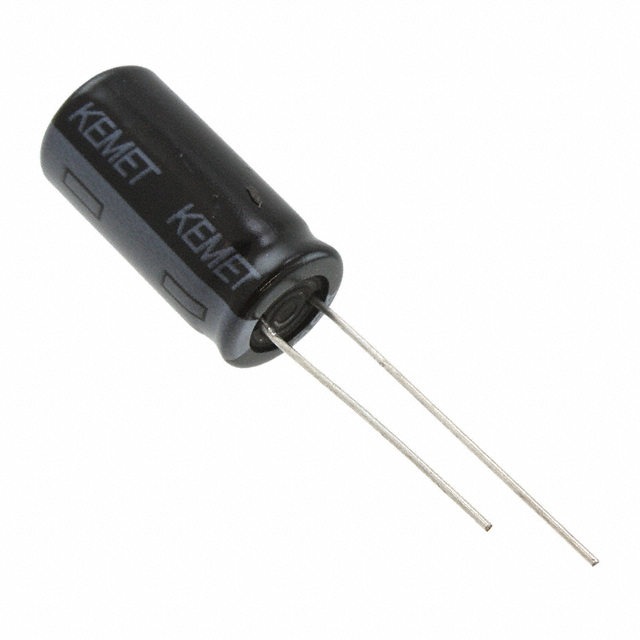

ESH108M Series

Manufacturer: KEMET

Catalog

CAP ALUM 1000UF 20% 6.3V RADIAL

Part	Voltage - Rated	Tolerance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Polarization	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Mounting Type	Applications	Package / Case	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [z]

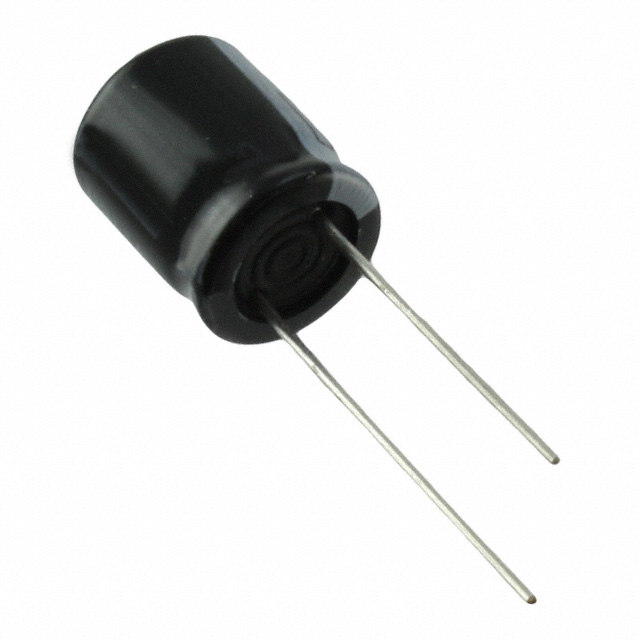

KEMET ESH108M6R3AH1AA	6.3 VDC	20 %	0.197 "	5 mm	2000 Hrs	Polar	470 mA	-40 C	105 ░C	0.394 in	10 mm	540.5 mA	0.531 in	13.5 mm	1000 µF	Through Hole	General Purpose	Can Radial
KEMET ESH108M025AH4AA	25 VDC	20 %	0.197 "	5 mm	2000 Hrs	Polar	740 mA	-40 C	105 ░C	0.394 in	10 mm	851 mA			1000 µF	Through Hole	General Purpose	Can Radial	0.866 in	22 mm
KEMET ESH108M016AH4AA	16 V	20 %	0.197 "	5 mm	2000 Hrs	Polar	700 mA	-40 C	105 ░C	0.394 in	10 mm	805 mA		21 mm	1000 µF	Through Hole	General Purpose	Can Radial			0.827 "
