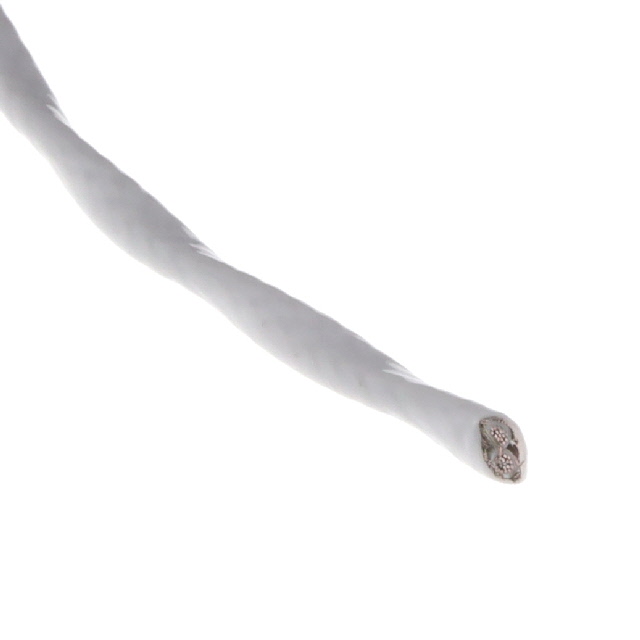

275002002 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
AE HIGH/LOW TEMPERATURE /BULK FT /FT
| Part | Shield Material | Shield Coverage | Shield Type | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Cable Type | Voltage | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | Braid | 914.4 m | 3000 ' | Copper Tinned | 0.162 in | 4.11 mm | Ethylene Tetrafluoroethylene (ETFE) | 0.0098 " | 0.25 mm | -55 C | 150 °C | 20 AWG | Multi-Conductor | 600 V | 2 | 19 | 32 AWG | Ethylene Tetrafluoroethylene (ETFE) | Natural |
